Sheet & Tarpaulin Welding Machines

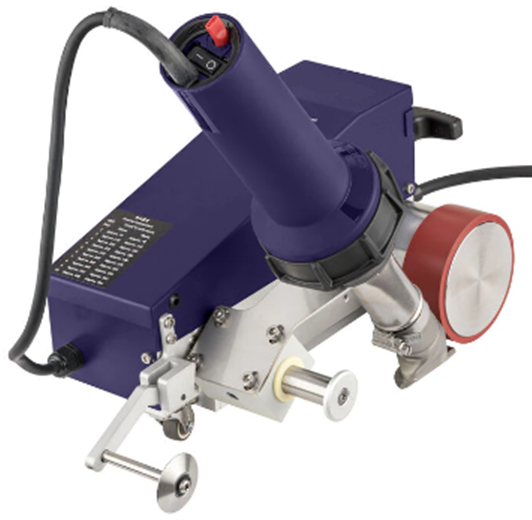

HSK-Plast 1700

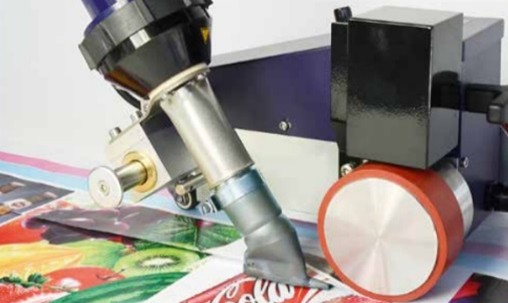

Intuitive and automatic hot air welding machine for tarpaulins and banners. Integrated guide roller for optimal track guidance on overlap welds and hem seams. Automatic driving and welding start when swung into position.

• Welding seam width: 20 mm or 30 mm
• Integrated guide roller for precise seam tracking
• Automatic start on swing-in
• Freely adjustable speed: 0.4–7.5 m/min
• Freely variable welding temperature
• 1600 W blower for consistent temperature and air volume

Voltage	230 V
Max. power	1700 W
Temperature range	40–530 °C
Welding width	20 mm or 30 mm
Speed range	0.4–7.5 m/min
Dimensions	445 × 280 × 320 mm
Weight	11 kg

Accessories: Lifting device Art. No. 159.531 · Additional weight Art. No. 131.849

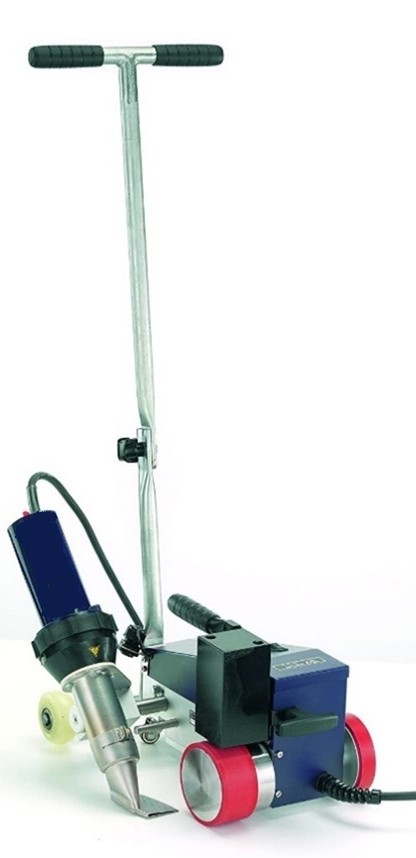

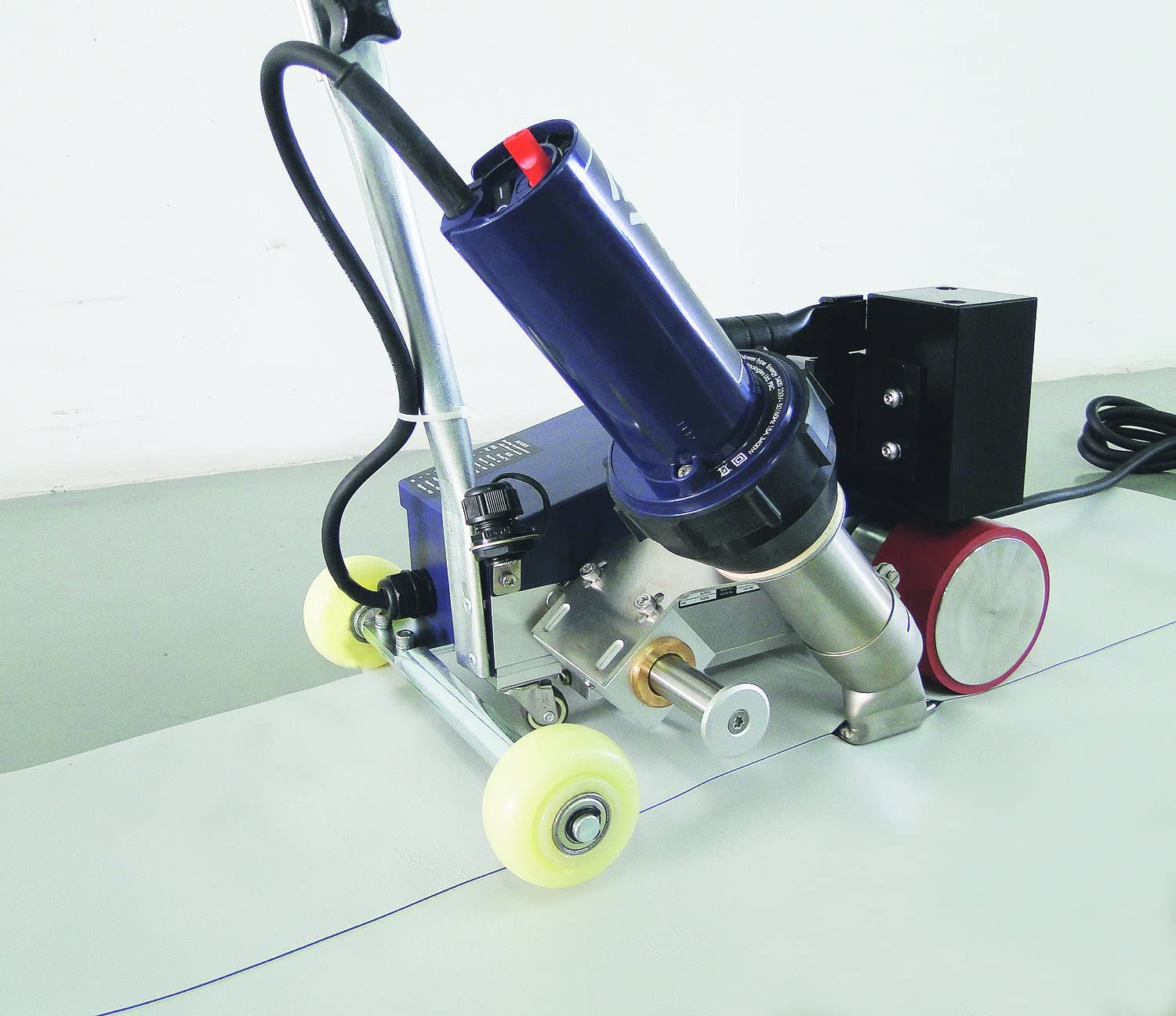

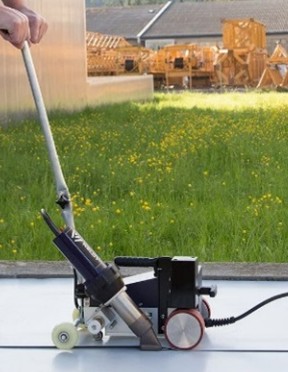

HSK-Plast 3400-RW

Professional lightweight roof welder — the lightest in its class at only 16 kg, yet outperforming far larger machines. Extra-wide 40 mm nozzle meets international standards. Integrated laser beam for straight seam guidance. Suitable for TPO and PVC membrane welding.

• Extra wide 40 mm welding nozzle — meets international standards
• Integrated laser beam for easy machine guidance
• Counterweight above contact rollers — high weld quality
• Automatic driving and welding start
• Guide bar and lifting device for easy handling
• Freely adjustable speed and temperature
• Powerful 3400 W blower for consistent output
• Suitable for TPO and PVC materials

Voltage	230 V
Max. power	3500 W
Temperature range	20–600 °C
Welding width	40 mm
Speed range	1.0–7.5 m/min
Dimensions	445 × 280 × 320 mm
Weight	16 kg

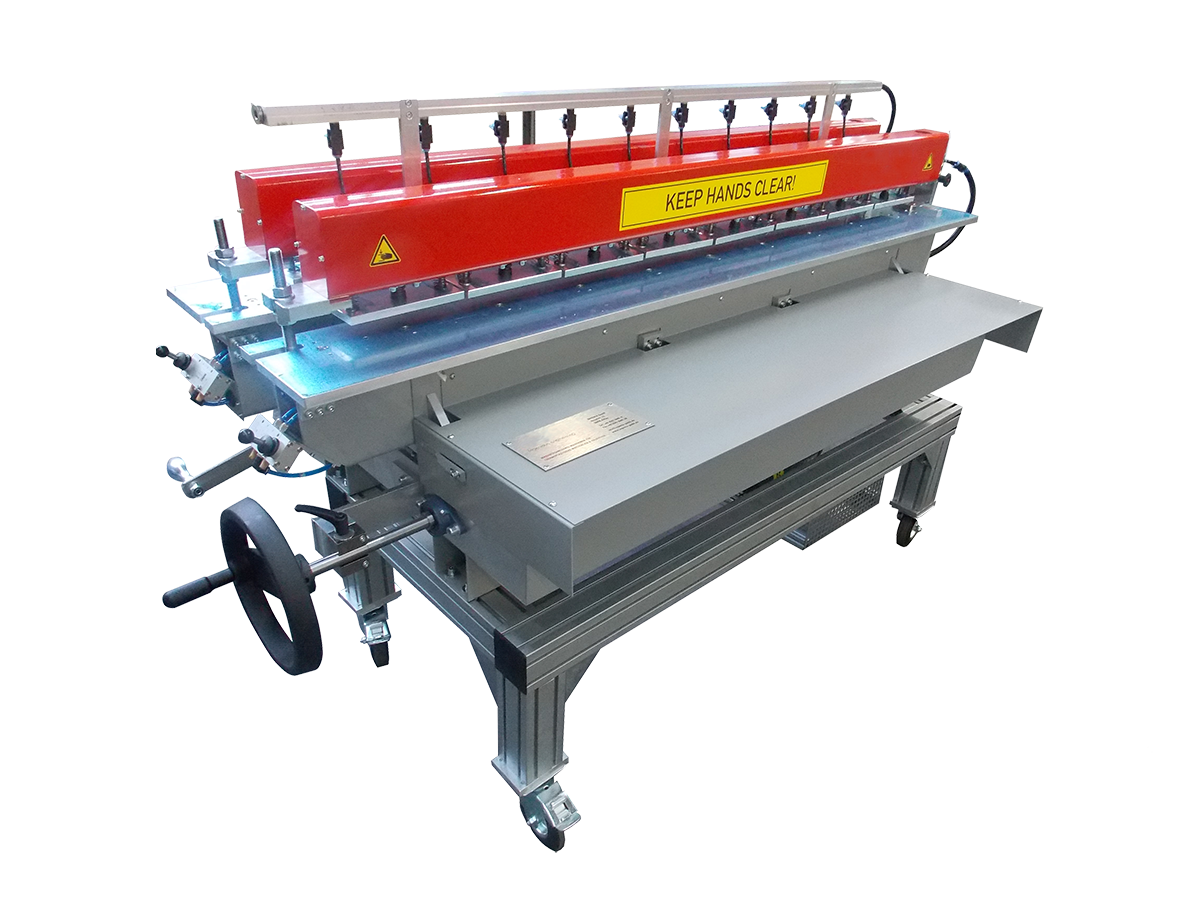

Butt-Welding Machine S-Hand

Manual hand butt welding machine — the ideal entry-level or portable solution. Welding cycle is hand-operated. Optional manual 90° welding fixture available. Available in two working widths.

• Working width 1.50 m — up to 20 mm material thickness
• Working width 2.00 m — up to 15 mm material thickness
• Manual welding cycle operation
• Optional manual 90° welding fixture
• Portable and easy to set up

Contact us for current specifications and pricing

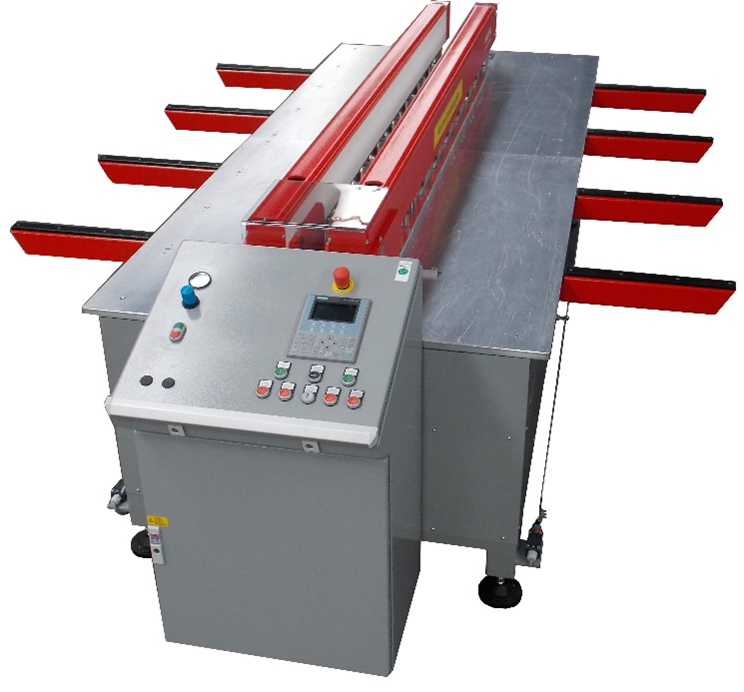

Butt-Welding Machine S econo

PLC-controlled mid-range sheet butt welding machine. Integrated PLC control allows all operator-set times to be extended or shortened at the touch of a button during welding. CNC table force control with database as standard. Optional automatic 90° welding fixture.

• Integrated PLC control — times adjustable during welding
• CNC table force control with database
• Available: 2 m, 3 m, 4 m and customised widths
• Weldable thicknesses: 3–25 mm
• Optional semi-automatic or fully automatic 90° welding fixture

Contact us for full specifications — available in multiple configurations

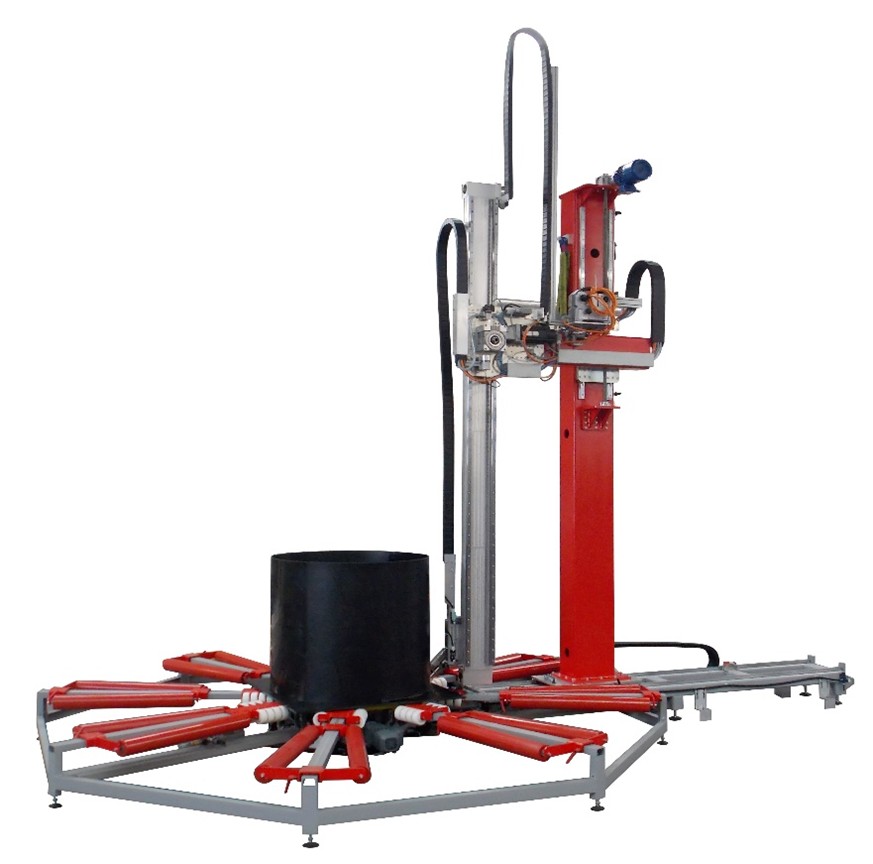

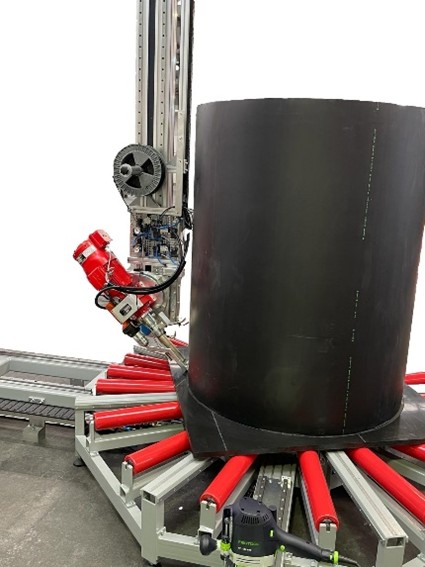

Turntable Welder — Round Tank Fabrication

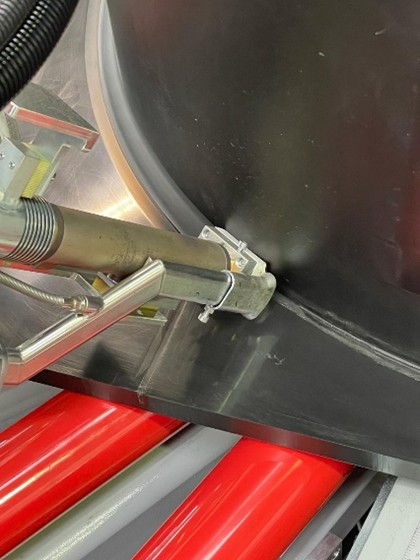

The HSK-Ingenia DT40 enables fast and safe welding of round tanks up to Ø 4 m diameter and 6 m height. A high-spec micro-controller manages the entire welding process with maximum precision — speed, extruder temperature and preheat temperature. All relevant parameters are logged as standard: material, weld temperatures, joint length, commission number, welder ID, inventory number and custom data fields.

• Tank diameter range: up to Ø 4 m
• Tank height range: up to 6 m
• High-spec micro-controller — full process control
• Precise speed and temperature regulation
• Full parameter logging: material, temps, weld length, traceability data
• Commission number, welder ID, inventory number recording
• User-defined additional data fields
• State-of-the-art traceability as standard

Technical data: see special brochure — contact ACS for details
