ACS › HSK Plastic Welding › Hot Gas Welders
HSK Kunststoff Schweisstechnik

Hot Gas Plastic Welders

HSK hot gas welding tools range from compact pen-style welders for precision tank and apparatus work through to high-output hand welders for thermoplastic fabrication. All are suitable for PE, PP, PVC, PVDF and other thermoplastics. External air supply or self-contained blower models available.

Authorised UK Distributor
External Air Supply Models

HSK 200CI — Compact Welding Guns

Small and compact welding pistols for welding thermoplastics. Infinitely adjustable temperature via potentiometer. 8 m hose and cable. Flexible air hose. Cooled protective tube. Nozzles adjustable in any position. Suitable for both screw-fit (M10/M14) and plug-in nozzles.

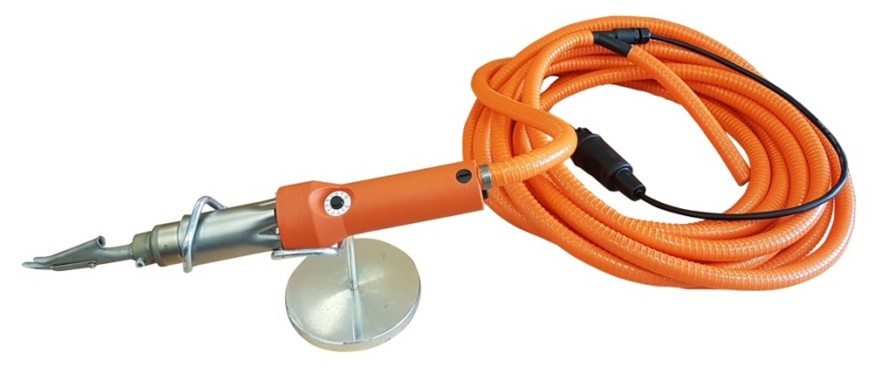

HSK 200CI-G Click to enlarge
Art. No. 400112

HSK 200CI-G

Compact hot gas welding gun with threaded nozzle connection. Available with M10 or M14 thread. Requires external air supply (HSK-DT 80 blower recommended).

  • Infinitely adjustable temperature via potentiometer
  • 8 m hose package and cable
  • Very flexible air hose
  • Cooled protective tube
  • Nozzles adjustable in any position
  • Threaded nozzle connection: M10 or M14

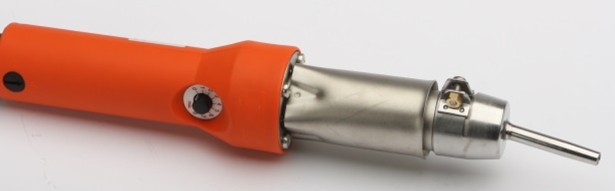

HSK 200CI-S Click to enlarge
Art. No. 400111

HSK 200CI-S

Identical to the HSK 200CI-G but with plug-in (steckbar) nozzle connection for quick nozzle changes without tools.

  • Infinitely adjustable temperature via potentiometer
  • 8 m hose package and cable
  • Very flexible air hose
  • Cooled protective tube
  • Nozzles adjustable in any position
  • Plug-in nozzle connection for fast changes

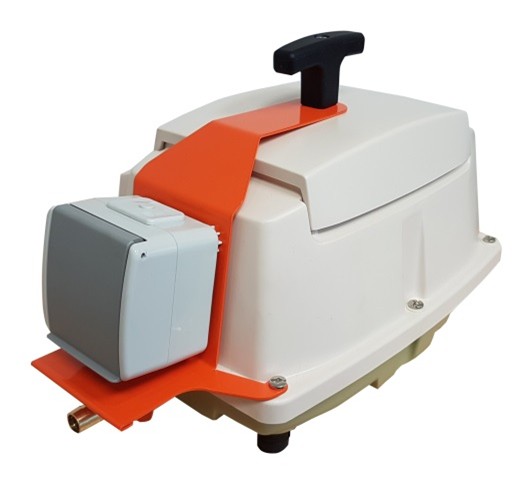

HSK-DT 80 Mounting Blower Click to enlarge
Art. No. 400116

HSK-DT 80 Mounting Blower

The ideal air supply unit for HSK hot gas welding tools. Very quiet operation, long service life, low maintenance and low cost. Includes 1 socket and carrying handle.

Air flow 80 l/min
Includes 1 × socket, carrying handle
Operation Very quiet
Maintenance Low
Self-Contained Hand Welders

APX Series & HSK Penweld

Integrated blower hand welders — no external air supply required. Suitable for all thermoplastic materials in plastic fabrication, tank and container construction.

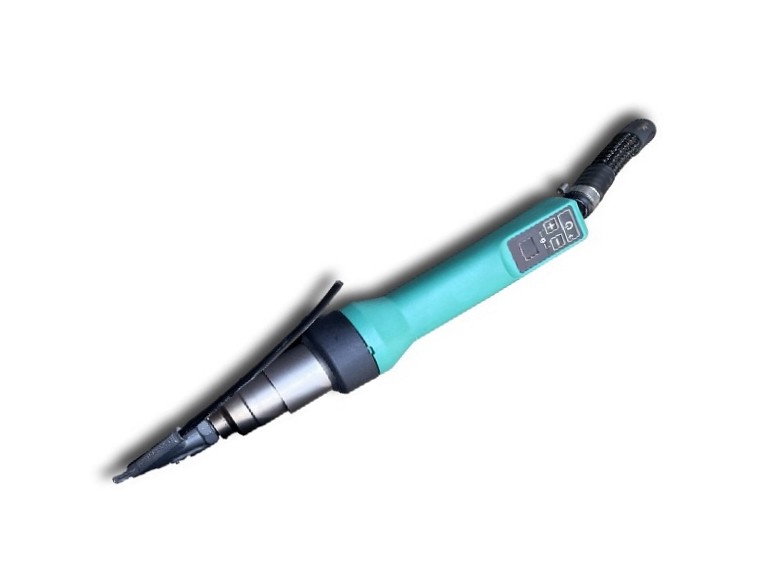

HSK-Penweld A Click to enlarge
Art. No. 110320

HSK-Penweld A

Precision plastic welding with integrated LED work light. Suitable for apparatus and tank construction. External air supply model — the integrated handle light keeps the weld zone visible even in dark areas.

  • Precision plastic welding for apparatus and tank construction
  • Integrated LED work light in handle
  • Weld zone visible in dark conditions
  • External air supply required

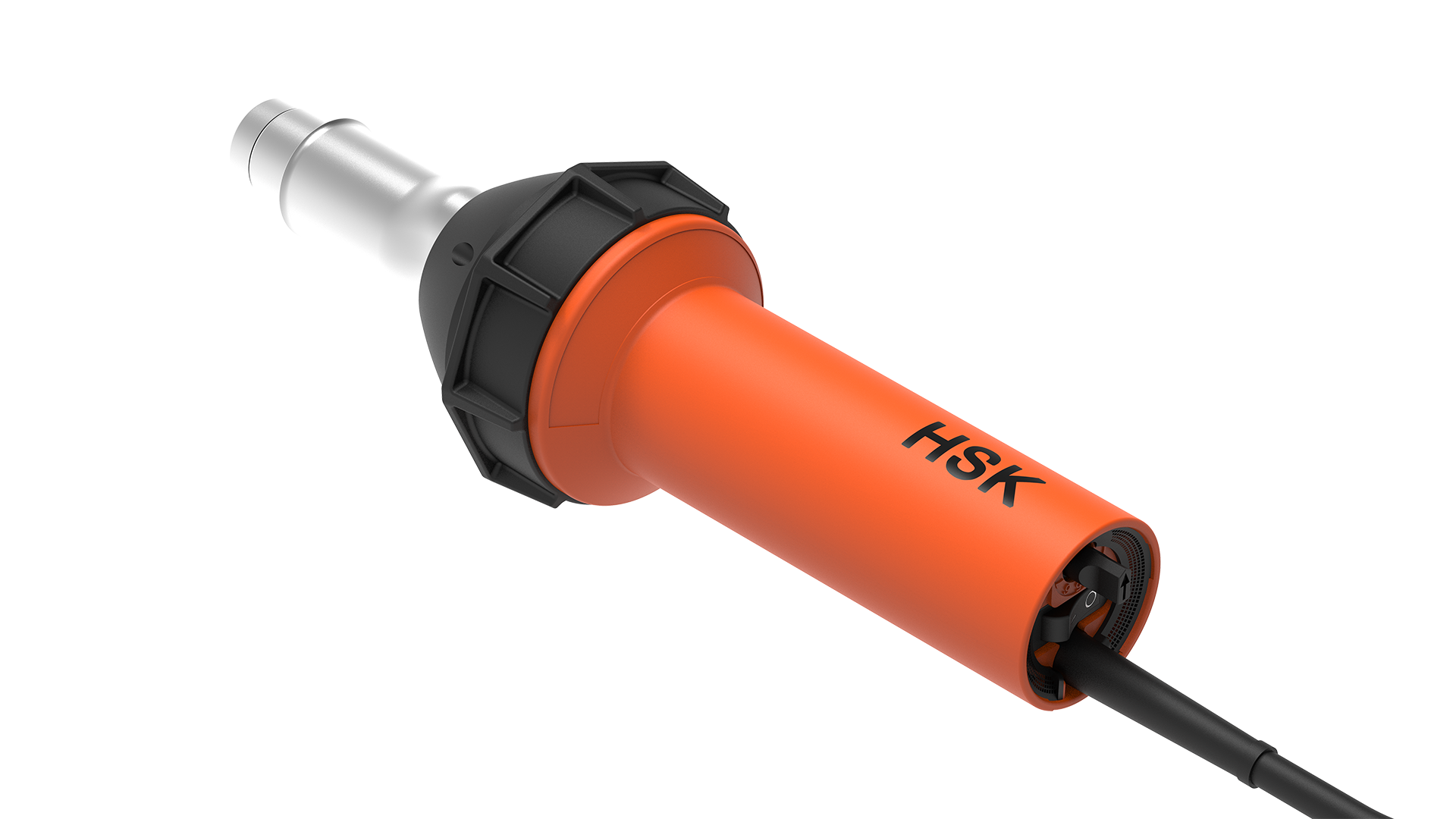

HSK-APX300 Click to enlarge
Art. No. 400173

HSK-APX300

Self-contained hand welder with temperature adjustment via potentiometer. Includes transport case. Suitable for all thermoplastic materials in plastic and container construction.

Temperature control Via potentiometer
Heating capacity 1600 W · 230 V
Weight 1.0 kg
Includes Transport case

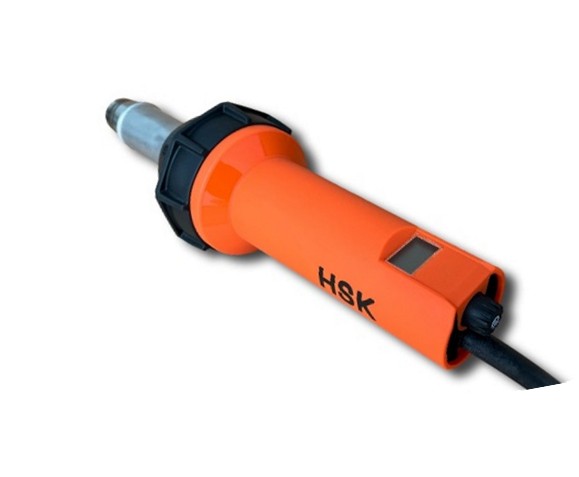

HSK-APX300D Click to enlarge
Art. No. 110208

HSK-APX300D

Digital version of the APX300 with precise temperature control from 40–620 °C. Ideal where exact temperature repeatability is required. Includes transport case.

Temperature control Digital 40–620 °C
Heating capacity 1600 W · 230 V
Weight 1.0 kg
Includes Transport case

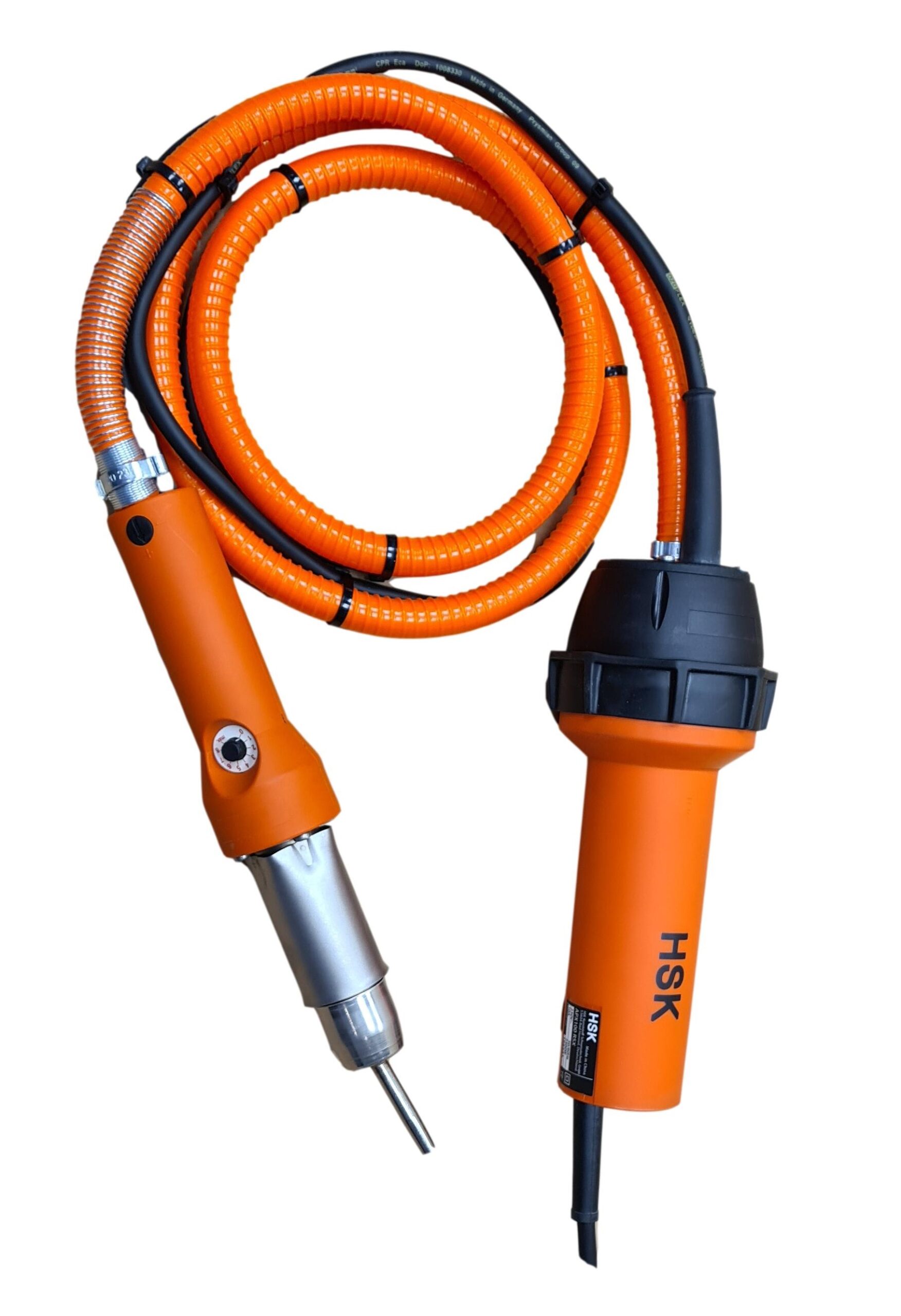

HSK 400-S Click to enlarge
Art. No. 03022

HSK 400-S

The compact HSK 200CI welding gun coupled with an integrated HSK hand blower. A combined, self-contained unit for operators who need portability without a separate air supply unit.

  • HSK200 welding gun coupled with integral hand blower
  • Fully self-contained — no separate air supply
  • Compact and portable

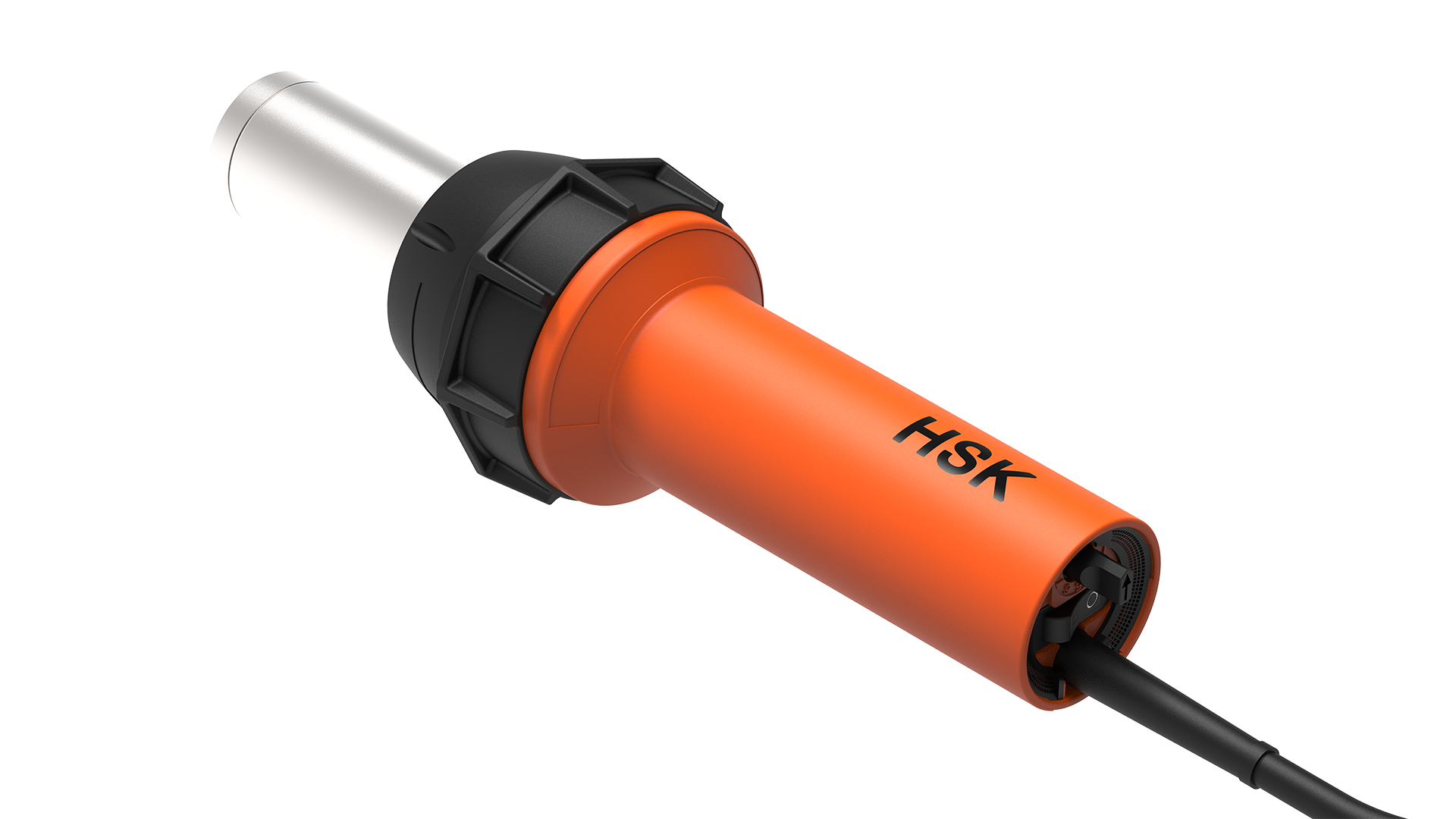

HSK-APX100 Hot Air Blower Click to enlarge
Art. No. 400174

HSK-APX100 Hot Air Blower

Industrial hot air blower for heating, deformation, shrinking and activating thermoplastics. High output 3400 W. Includes transport case.

Applications Heating, deformation, shrinking, activating
Heating capacity 3400 W · 230 V
Weight 1.3 kg
Includes Transport case

Authorised UK Distributor

ACS Automation & Control Services Ltd is the authorised UK distributor for HSK Kunststoff Schweisstechnik GmbH. We supply the full range of hot gas welding equipment including nozzles, rollers, scrapers and all accessories. Contact us for pricing and technical advice.

ACS Automation & Control Services Ltd
Ashby-de-la-Zouch, Leicestershire
01530 530460
info@theplcguy.co.uk
→ Nozzles & welding accessories
→ All HSK product categories

Request a Quote or Demonstration

Contact us to discuss your application, request pricing, or arrange a product demonstration at your site.
