Plastic Pipe Butt Welding Machines

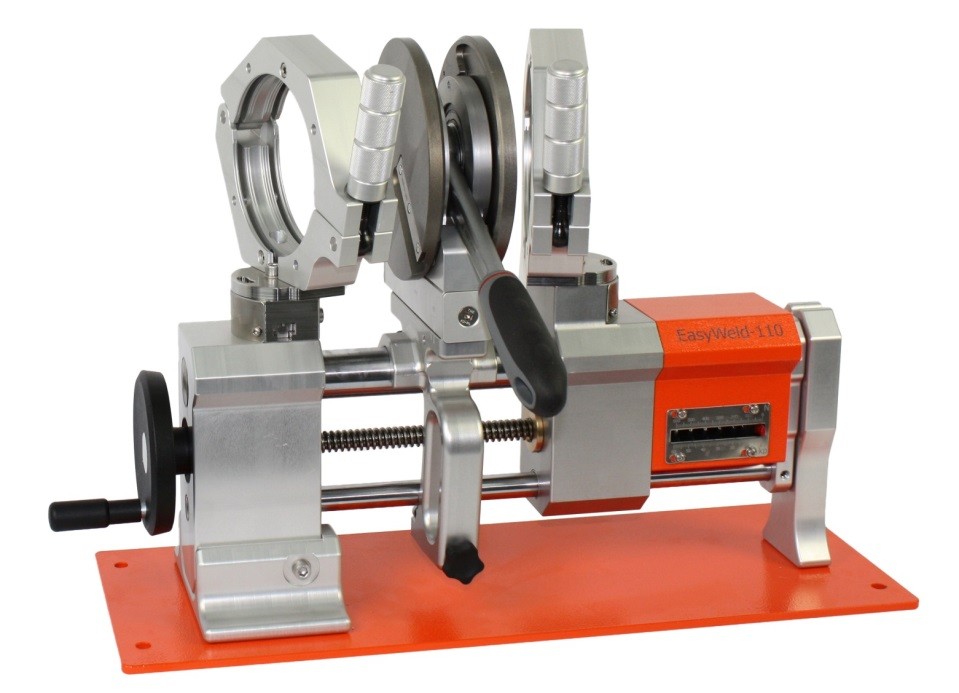

HSK Easy Weld 110

Heating element butt welding machine for PE, PP and PVDF pipes and fittings from OD 20 to OD 110 mm. Two large aluminium clamping tools, swivelling up to 15° each side for segmented bends. Includes manual planer, heating element, reduction inserts and steel carrying case.

• Pipe range: OD 20 – OD 110 mm (PE, PP, PVDF)
• Segmented bends possible: ±15° clamping tools
• Double clamping via 4 reduction inserts (small diameters)
• Fitting clamping tool available for short-leg fittings
• Light & compact — for pipeline and installation work
• Stationary use: fixable in vice or table support
• Manual planer operated by ratchet
• Heating element: electronically controlled per DVS 2208
• Heating element: 230 V / 600 W, Ø 140 mm working diameter
• Anti-stick coating, system and interval control lamps
• Steel carrying case included

Technical data available on request

HSK-HWT 160-M

Extremely mobile next-generation butt welding machine for PE, PP and PVDF pipes OD 40–160 mm. Suitable for sanitary installation, drain and pressure pipe laying, roof drainage and chimney lining systems. Delivered complete with work frame, electric planer, heating element and all reductions.

• Pipe range: DA 40 – DA 160 mm
• SDR range: SDR 41–11 (40–90 mm); SDR 41–17.6 (110–160 mm)
• Clamping tools adjustable ±15° — segmented welding possible
• Heating element removable and usable separately
• Includes electric planer, heating element, all reductions
• Stable work frame included

Working range	DA 32 (40) – 160 mm
Materials	PE, PP, other thermoplastics
Voltage	230 V · 50/60 Hz
Power	1.46 kW
Table travel (left)	130 mm
Machine dimensions	730 × 580 × 430 mm
Machine weight	33 kg
Overall with frame	730 × 1200 × 550 mm
Reductions	32, 40, 50, 56, 63, 75, 90, 110, 125, 140 mm
Includes	Steel transport case for reductions, manual & tools

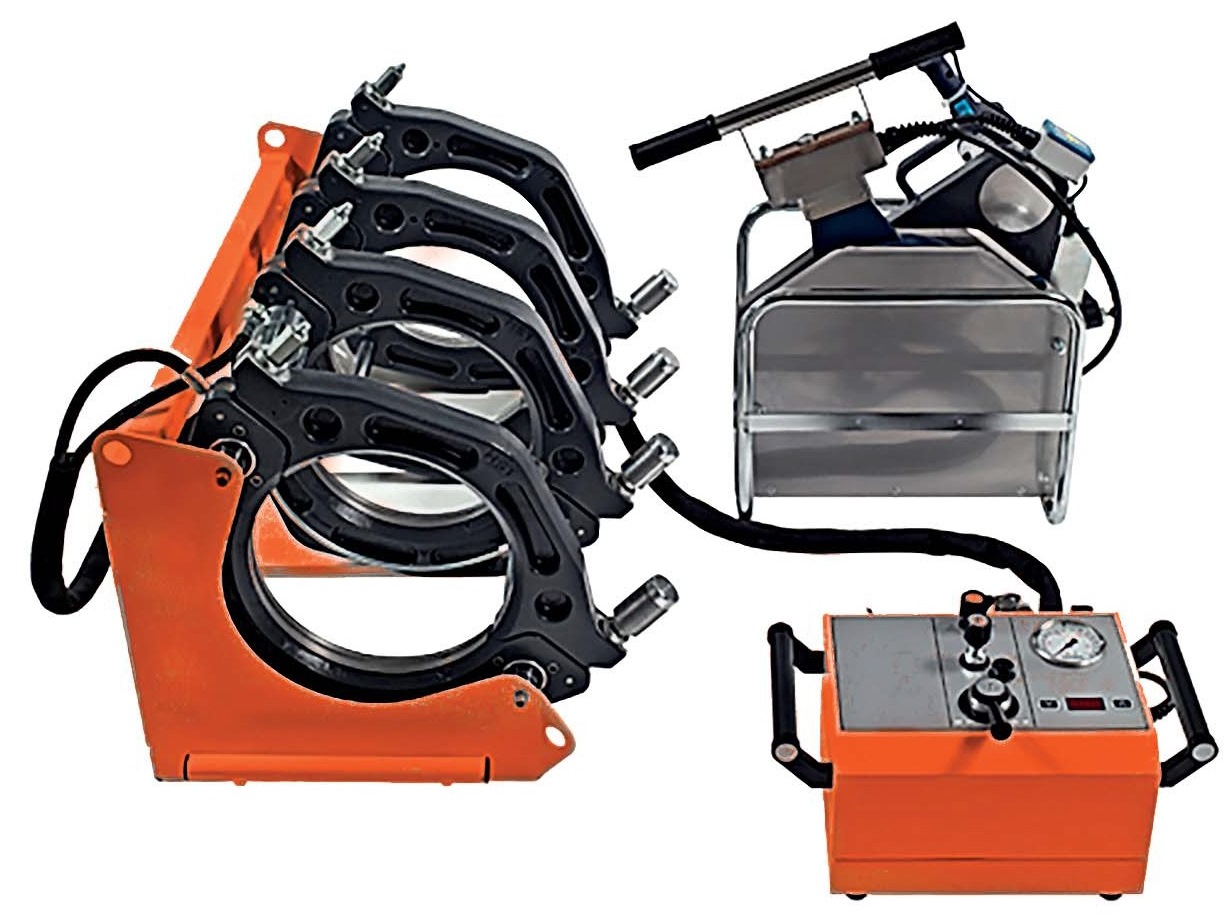

HSK Manual Hydraulic

The Manual Hydraulic Series butt welding machine. Superior manufacturing quality with unique fully integrated hydraulic enclosure — IP54 splash and dirt protection for all internal components including front panel controls. Upgradeable to full data logging with SPG 2.0 logger.

• Fully integrated hydraulic enclosure: IP54 rated (IP64 on request)
• All connections at rear — no separate power distribution box needed
• Facing tool and heating element connected at rear panel
• Easy upgrade to data logging via SPG 2.0 unit
• Additional power socket for operator convenience

Technical data and size range: see special brochure — contact us

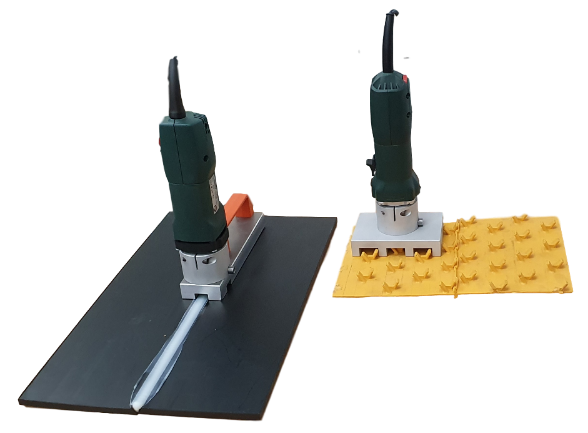

HSK-ECut-sure Milling Machine

Effortlessly removes the knobs on concrete protection plates. Dual-side guides guarantee easy and safe operation. With a modified guide unit, also removes protruding weld seams — extrusion welds and butt welds (bead).

• Removes knobs from concrete protection plates
• Guide rails on both sides for safe, straight cutting
• Modified guide unit removes protruding weld seams
• Suitable for extrusion and butt weld bead removal

Contact us for technical specifications and pricing
