Hand Welding Extruders
All rod-feed models accept Ø 3, 4 or 5 mm welding rod (PE/PP). Digital display of melt and air temperature as standard. Brushless blower motor for long service life.
Click to enlarge

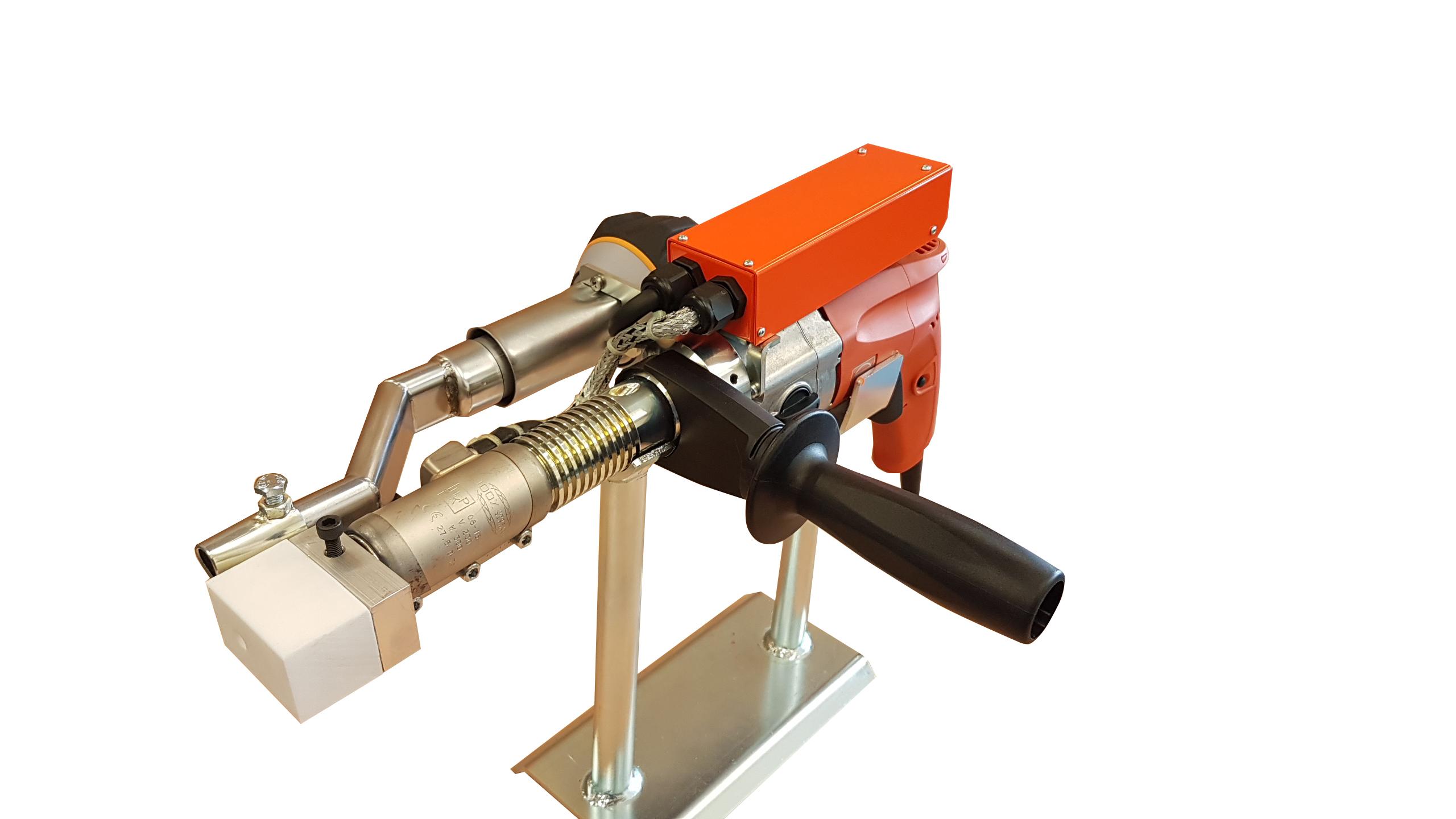

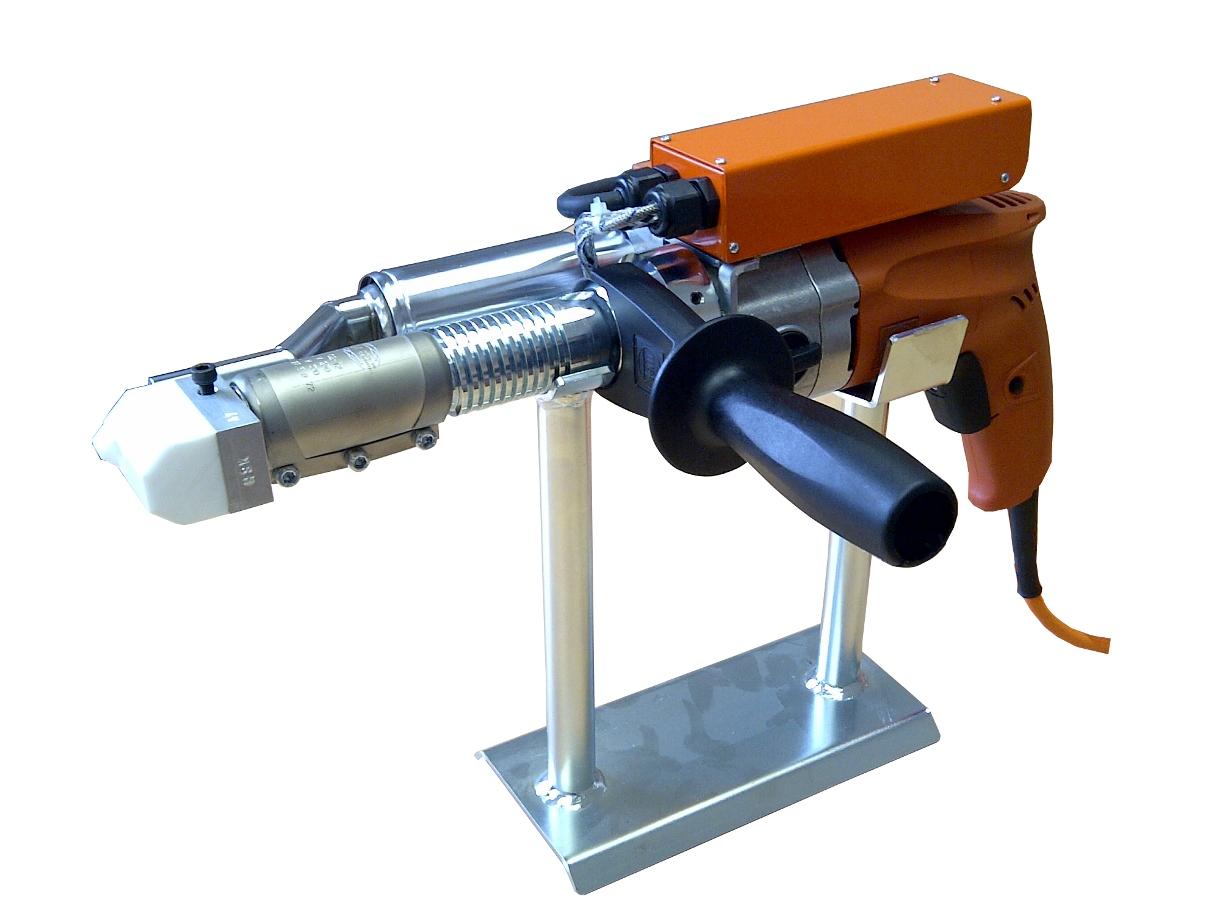

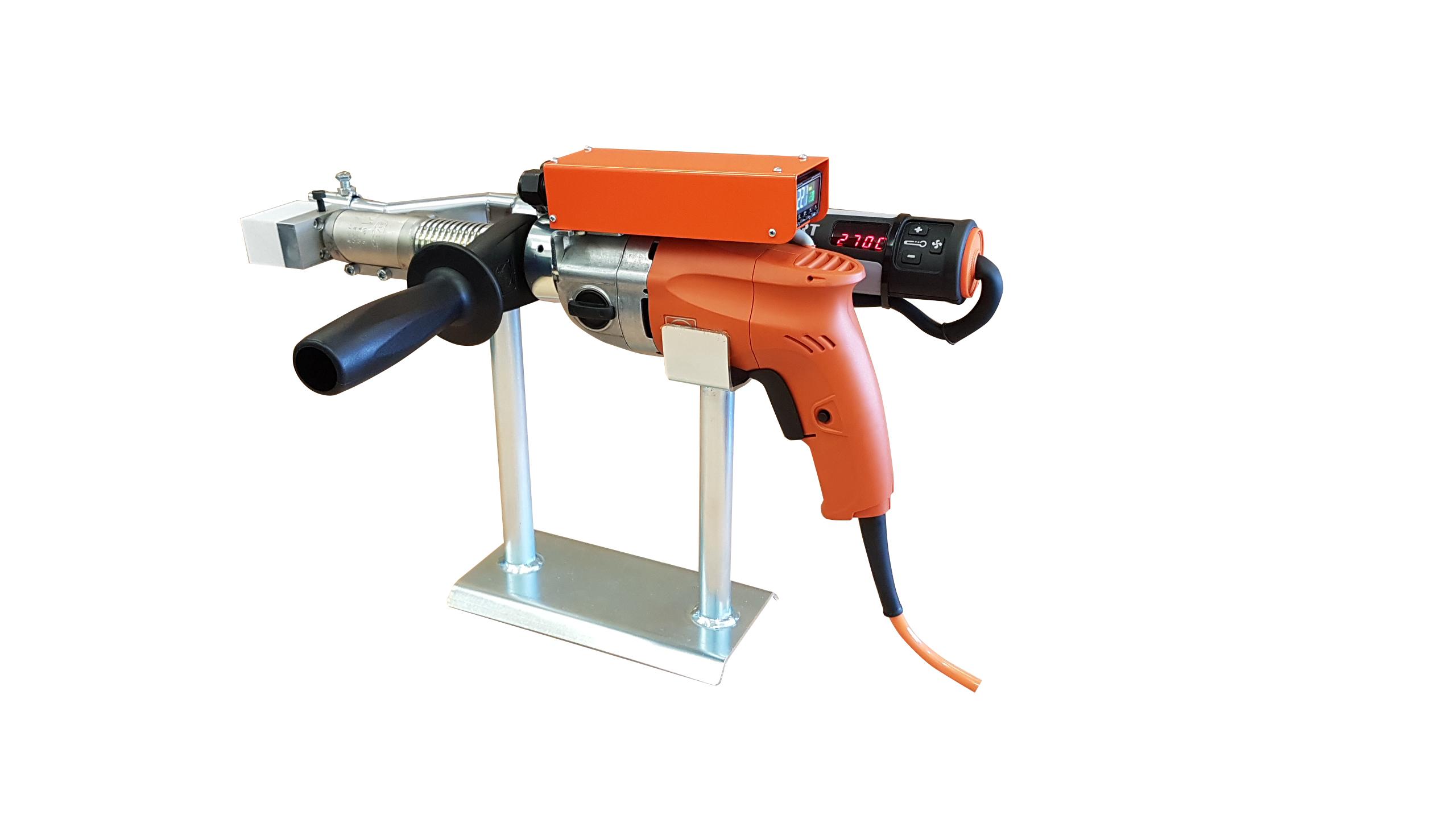

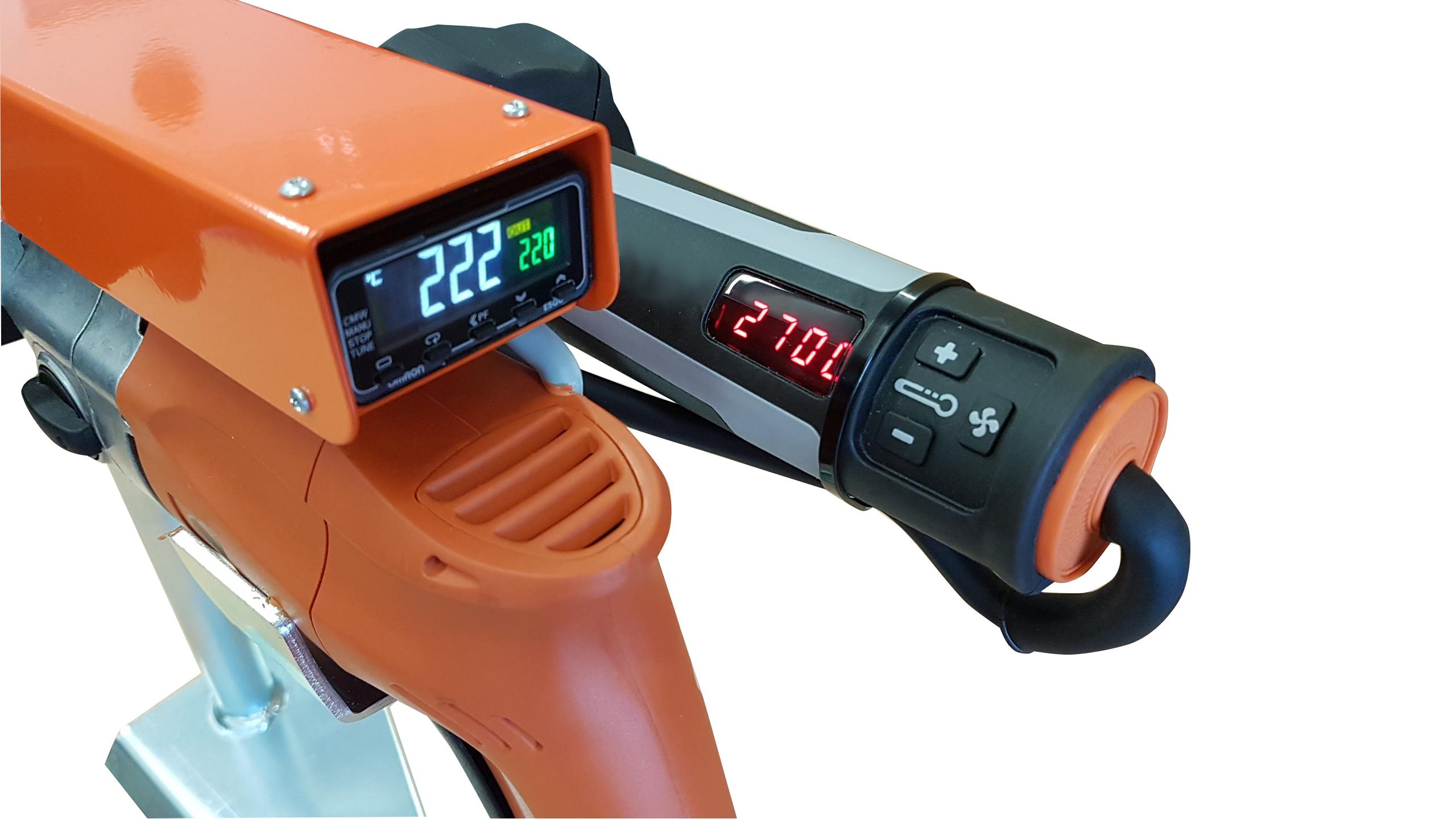

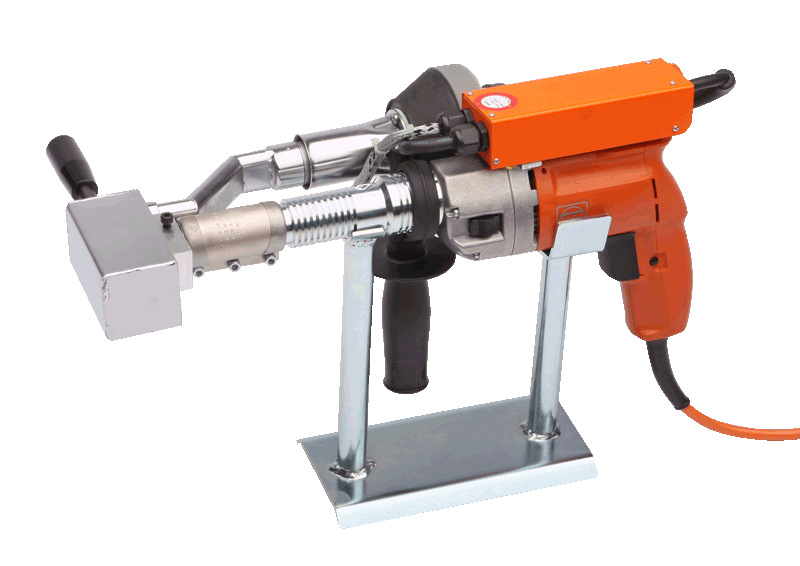

HSK 10 DE digital
Compact entry-level hand extruder with digital melt and air temperature display. Brushless blower motor.
| Welding capacity (PE) | 1.0 kg/h · Ø 4 mm rod |
| Max. rod diameter | Ø 3 / 4 mm PE/PP |
| Dimensions (L×W×H) | 400 × 120 × 200 mm |
| Extruder heating | 300 W |
| Hot air blower | 2000 W |
| Voltage | 230 V / 50 Hz |
| Weight | 4.4 kg |
| Includes | 1 × welding shoe blank |
Click to enlarge

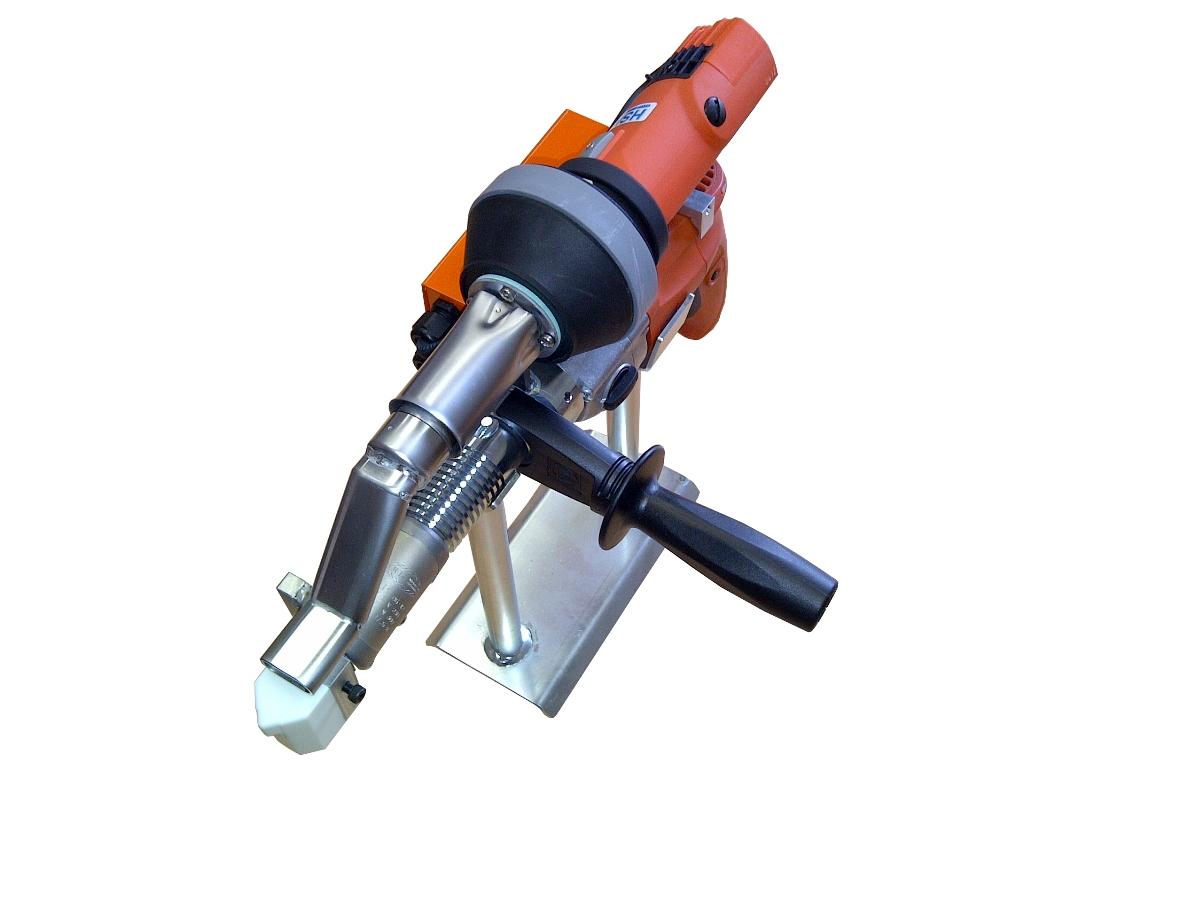

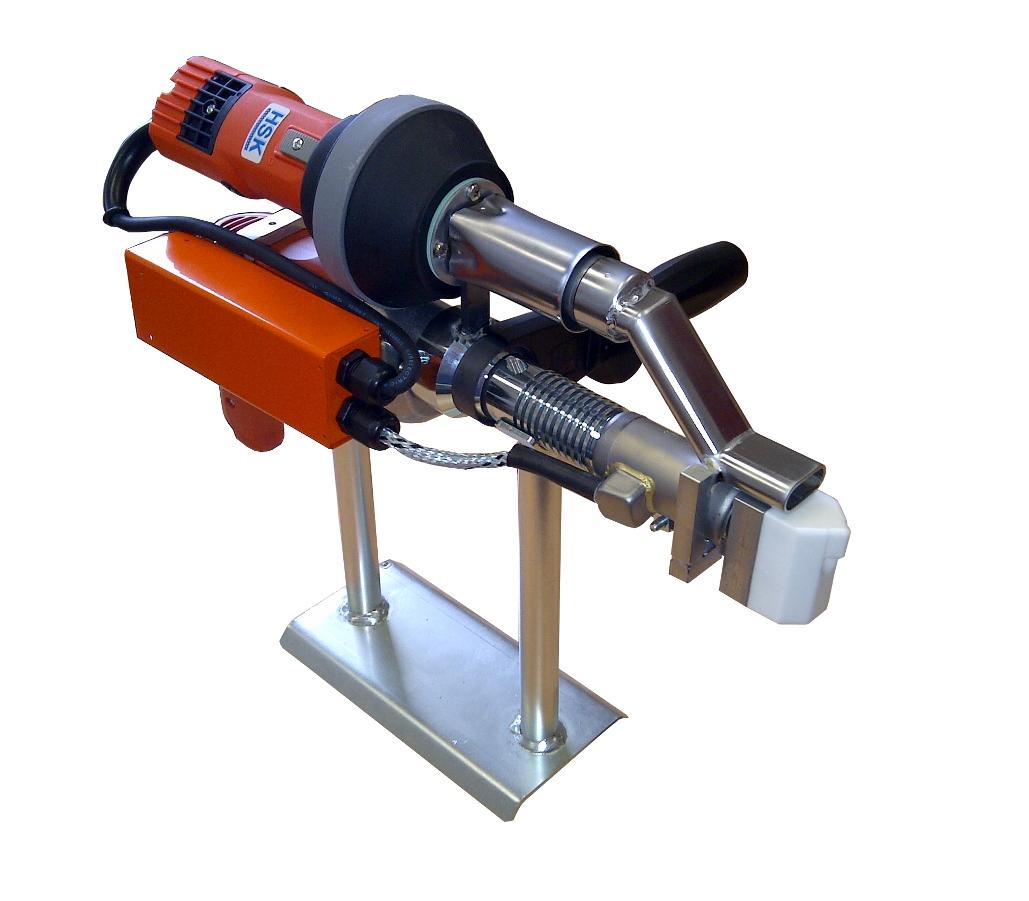

HSK 10.2 DE digital
Updated geometry with 360° rotatable welding shoe option. Brushless blower motor. Digital temperature display.
| Welding capacity (PE) | 1.0 kg/h · Ø 4 mm rod |
| Max. rod diameter | Ø 3 / 4 mm PE/PP |
| Dimensions (L×W×H) | 430 × 125 × 300 mm |
| Extruder heating | 300 W |
| Hot air blower | 1500 W |
| Voltage | 230 V / 50 Hz |
| Weight | 4.4 kg |
| Includes | 1 × welding shoe blank |
Available with 360° rotatable welding shoe
Click to enlarge

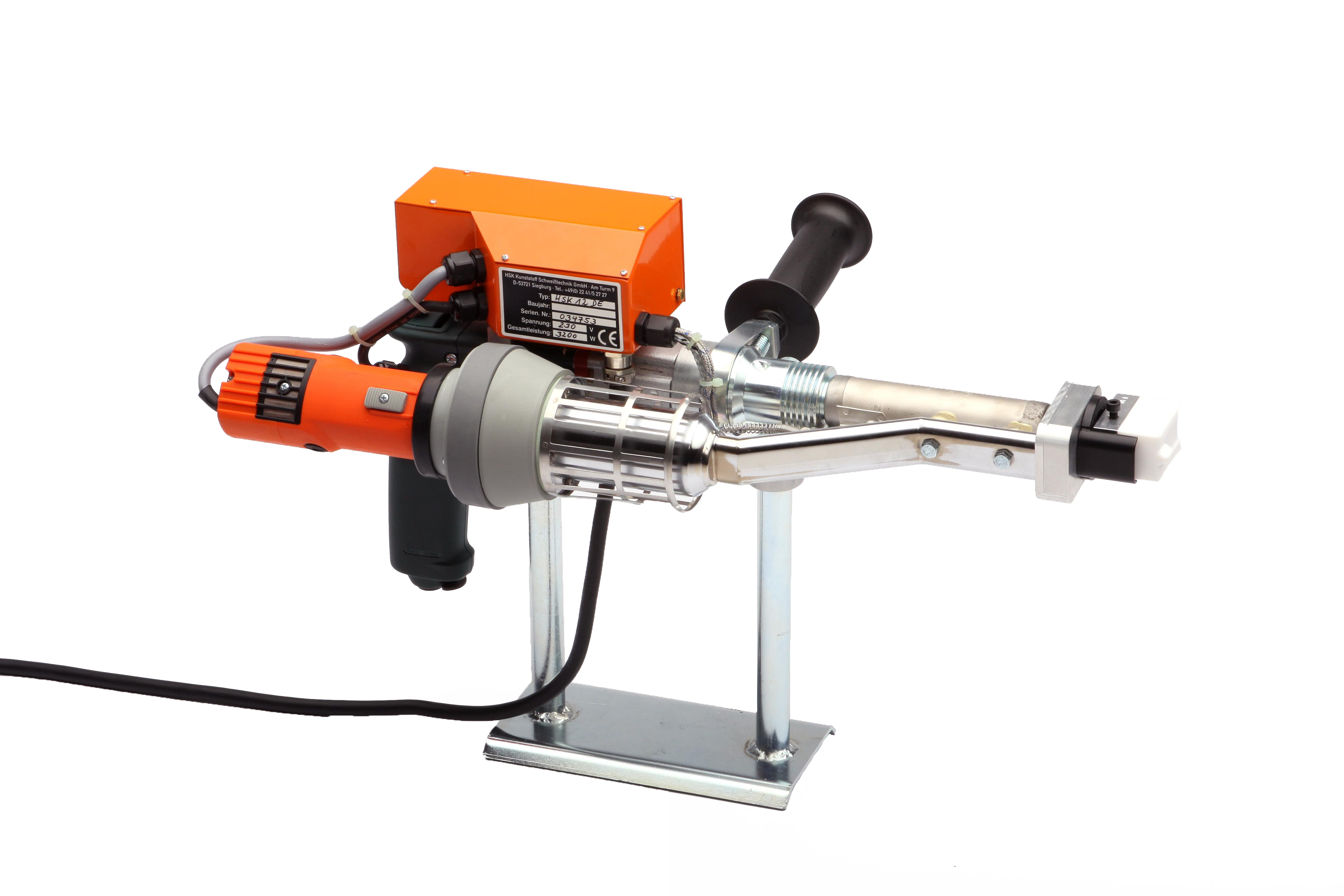

HSK 18 RSX
Mid-range extruder with 1.8 kg/h capacity. Digital melt and air temperature. 360° rotatable welding shoe option available.
| Welding capacity (PE) | 1.8 kg/h · Ø 4 mm rod |
| Max. rod diameter | Ø 3 / 4 mm PE/PP |
| Dimensions (L×W×H) | 550 × 190 × 280 mm |
| Extruder heating | 500 W |
| Hot air blower | 2200 W |
| Voltage | 230 V / 50 Hz |
| Weight | 6.7 kg |
| Includes | 1 × welding shoe blank |
Click to enlarge

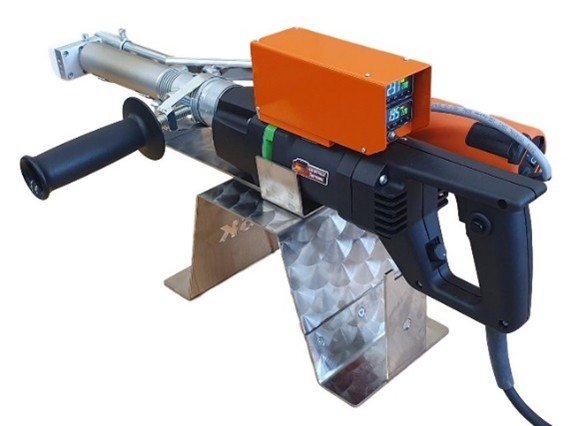

HSK 22 RSX
Professional heavy-duty extruder with 2.3 kg/h capacity. Accepts Ø 4 mm rod. Digital temperature control throughout.
| Welding capacity (PE) | 2.3 kg/h |
| Max. rod diameter | Ø 4 mm PE/PP |
| Dimensions (L×W×H) | 640 × 180 × 215 mm |
| Extruder heating | 700 W |
| Hot air blower | 2200 W |
| Voltage | 230 V / 50 Hz |
| Weight | 8.4 kg |
| Includes | 1 × welding shoe blank |
Click to enlarge

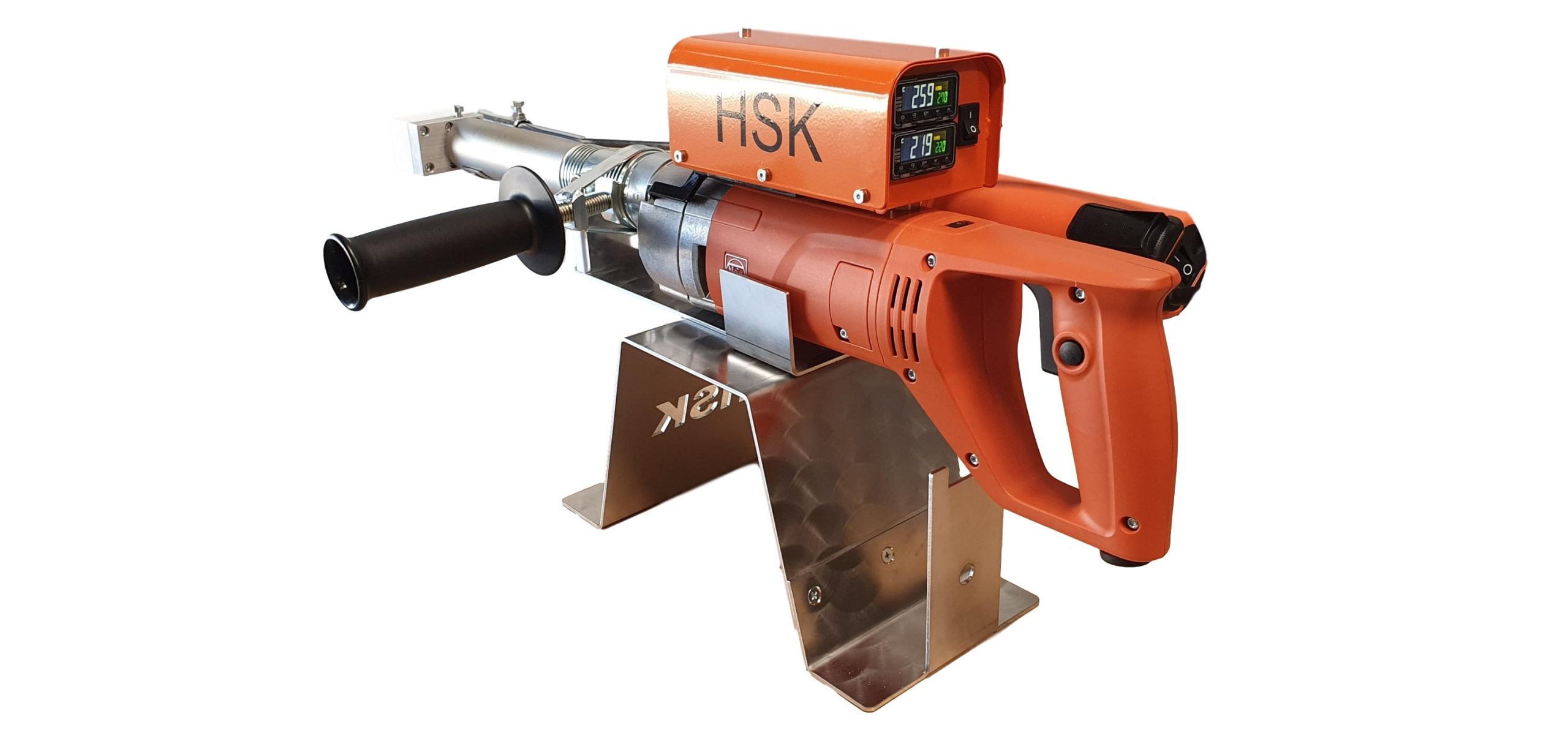

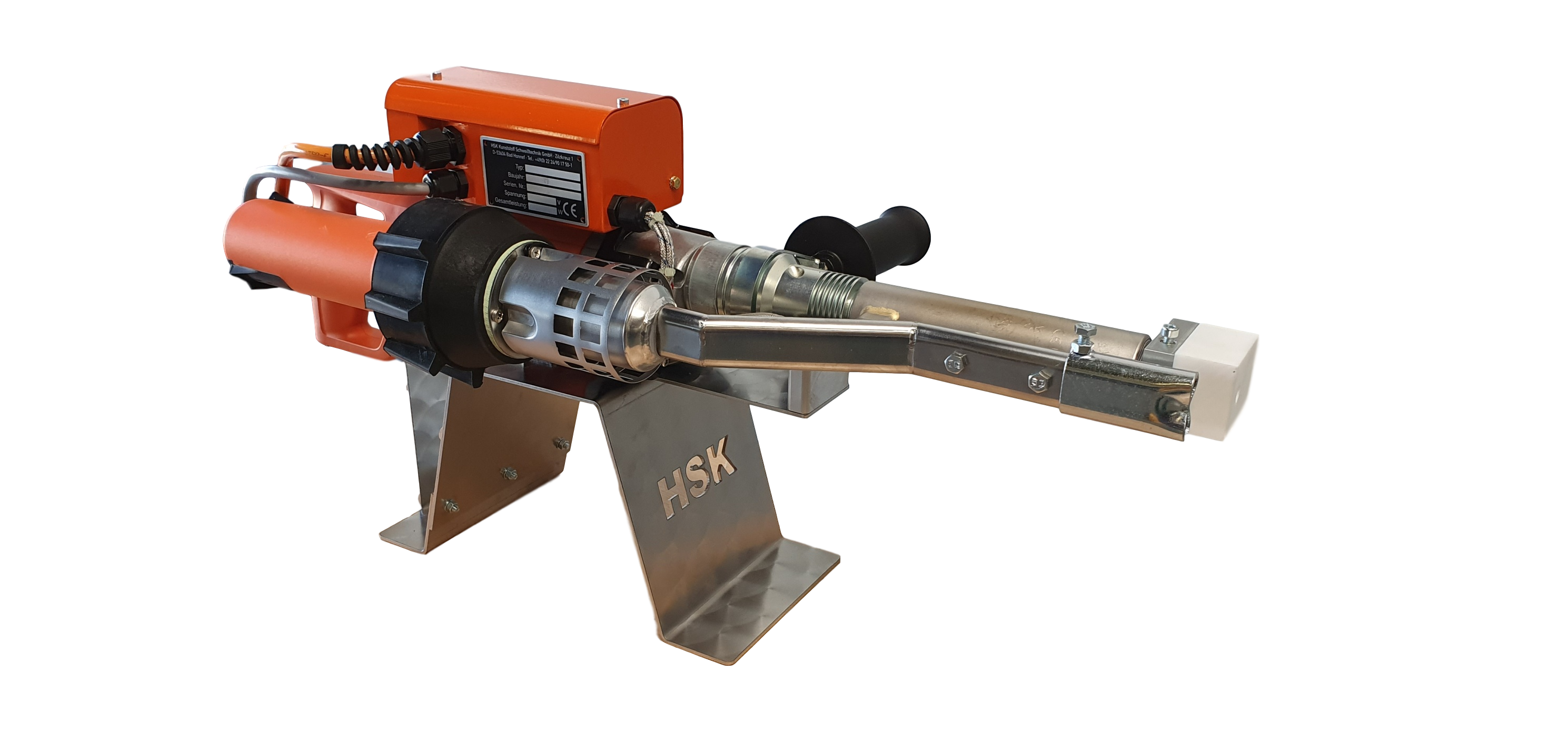

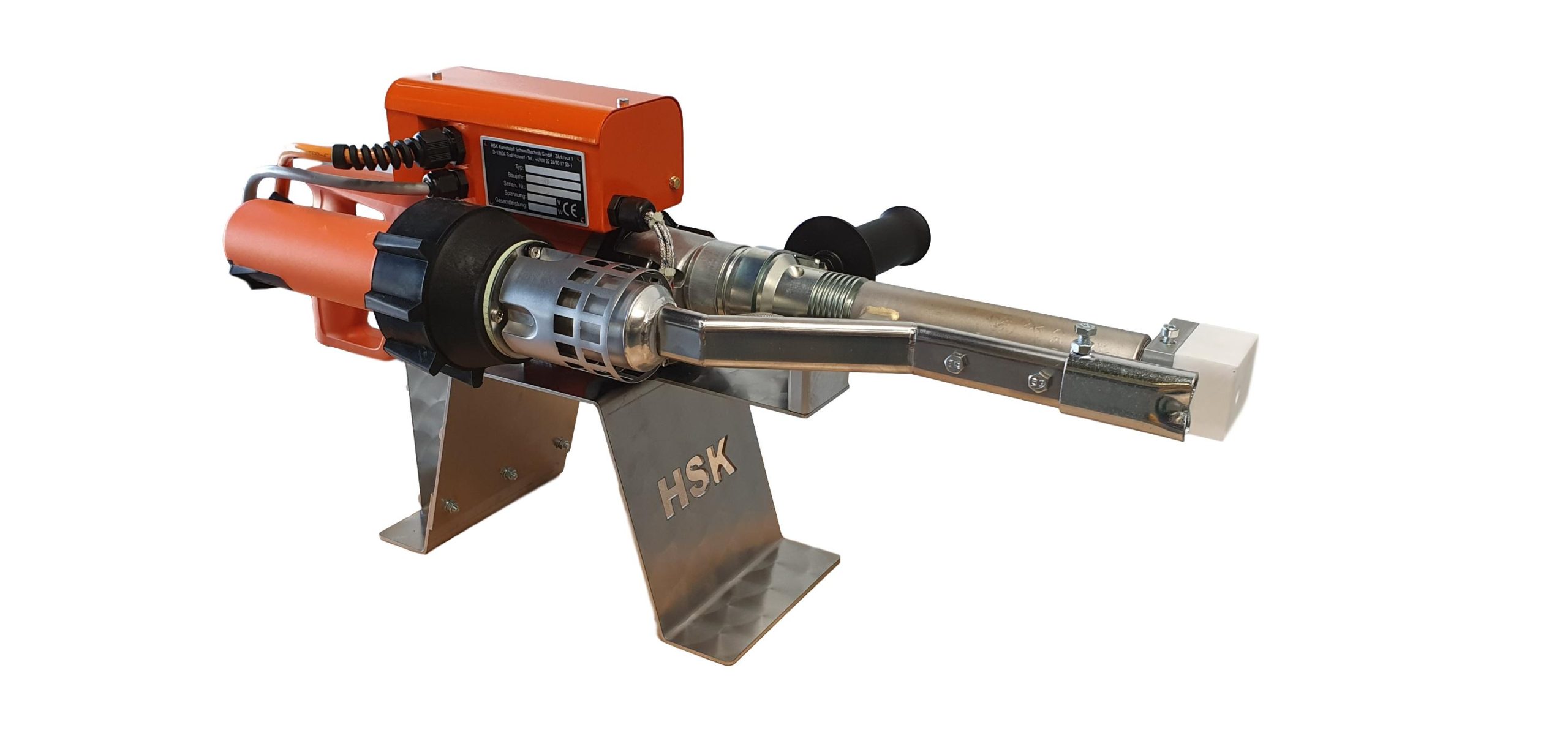

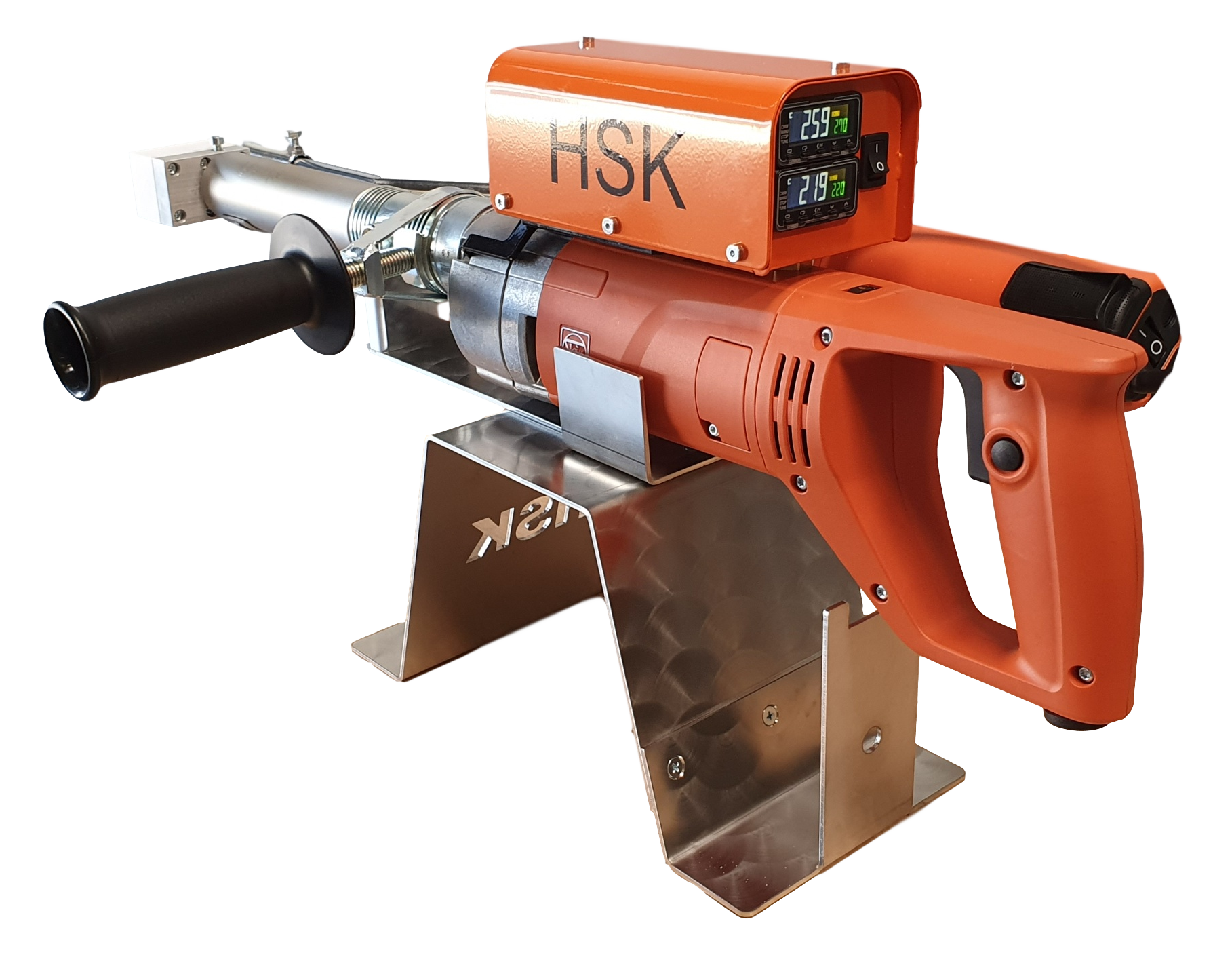

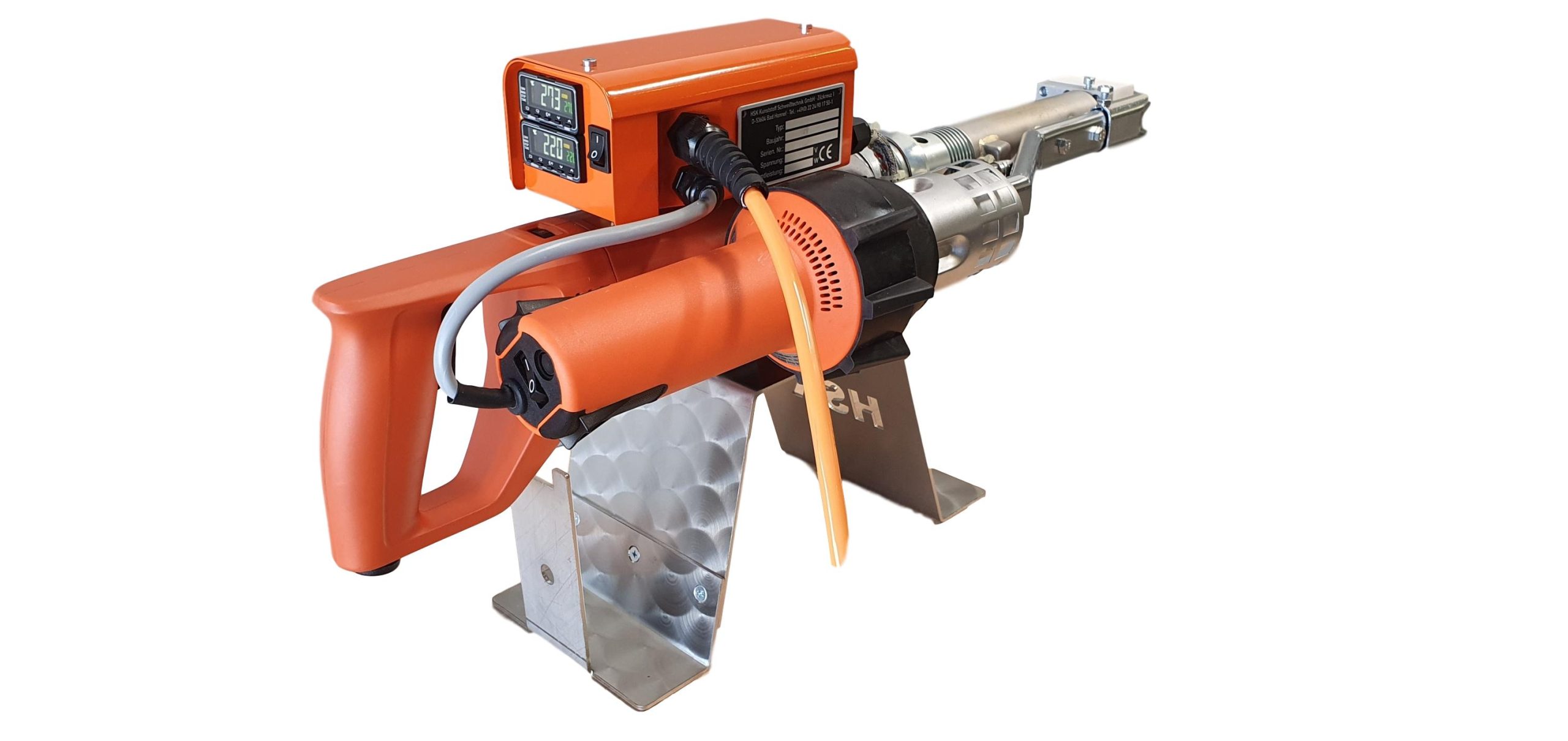

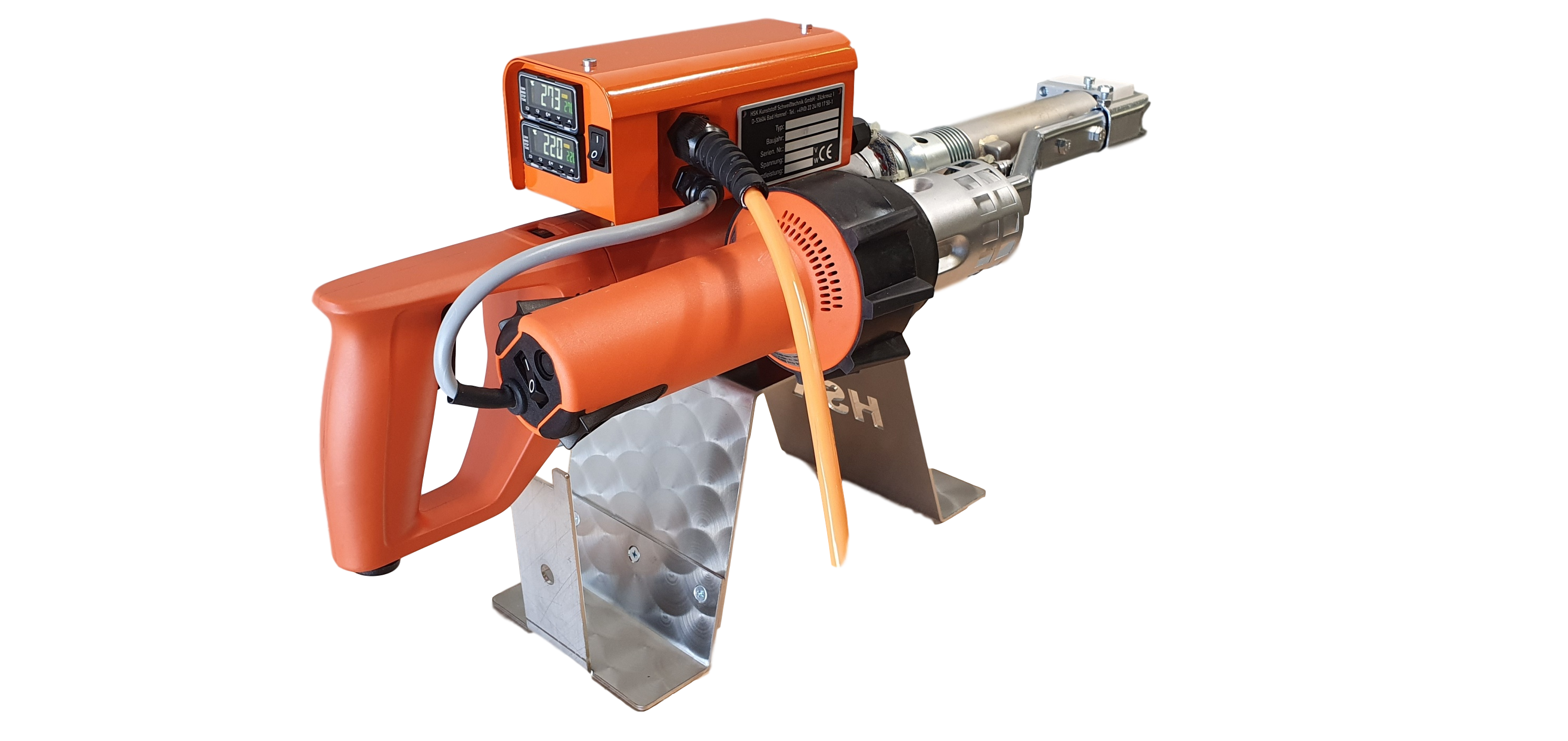

HSK 35 RSX
High-output extruder accepting up to Ø 5 mm rod. Ideal for thicker section work and higher-volume applications.
| Welding capacity (PE) | 3.0 kg/h · Ø 5 mm rod |
| Max. rod diameter | Ø 4 / 5 mm PE/PP |
| Dimensions (L×W×H) | 660 × 190 × 220 mm |
| Extruder heating | 700 W |
| Hot air blower | 2200 W |
| Voltage | 230 V / 50 Hz |
| Weight | 8.3 kg |
| Includes | 1 × welding shoe blank |
Click to enlarge

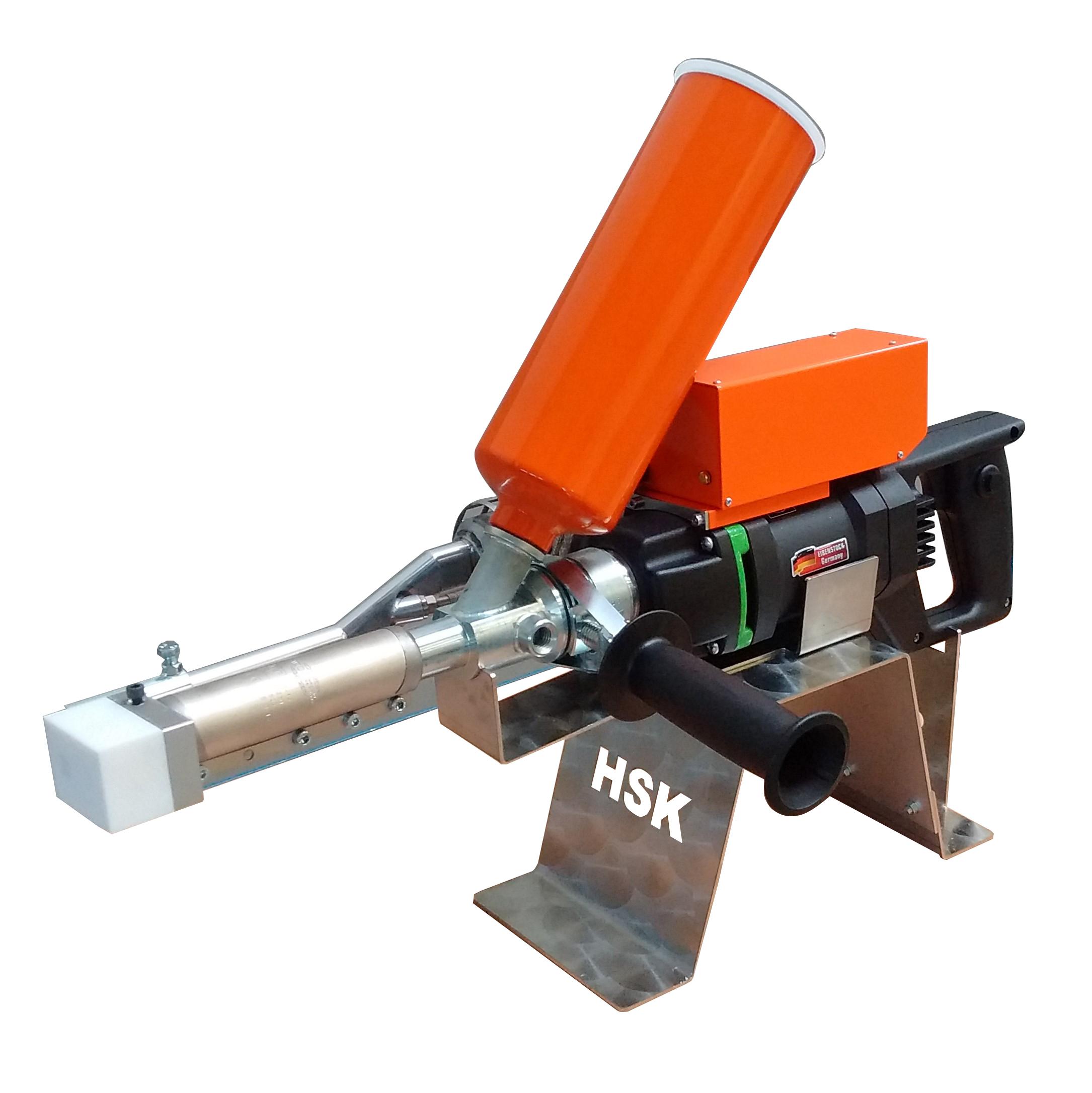

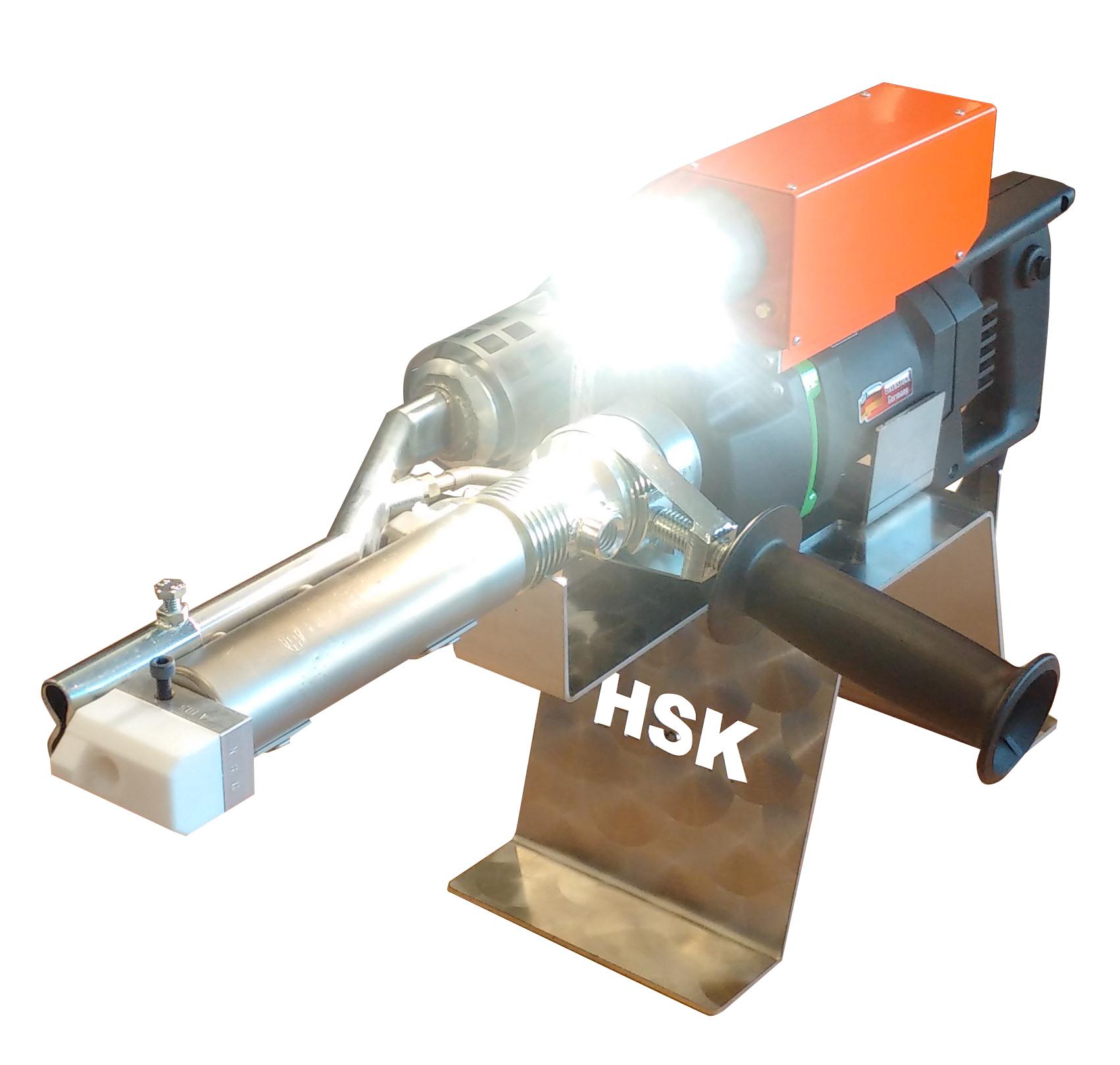

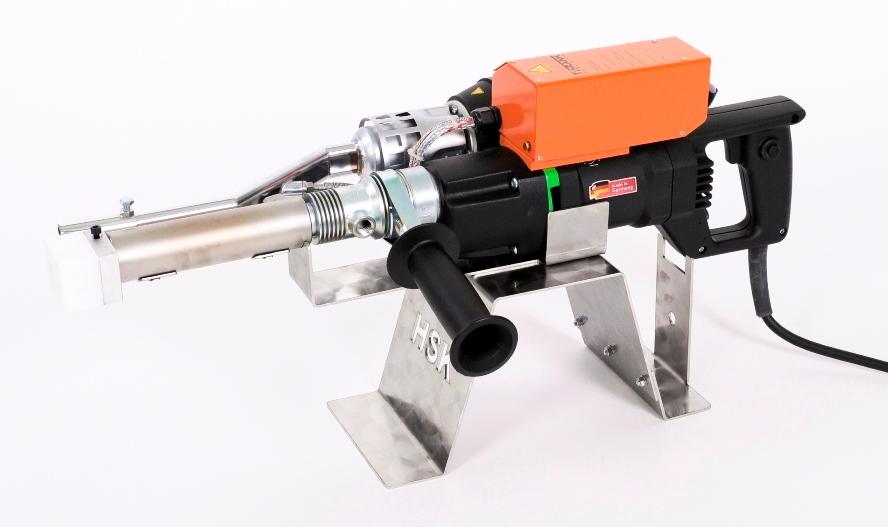

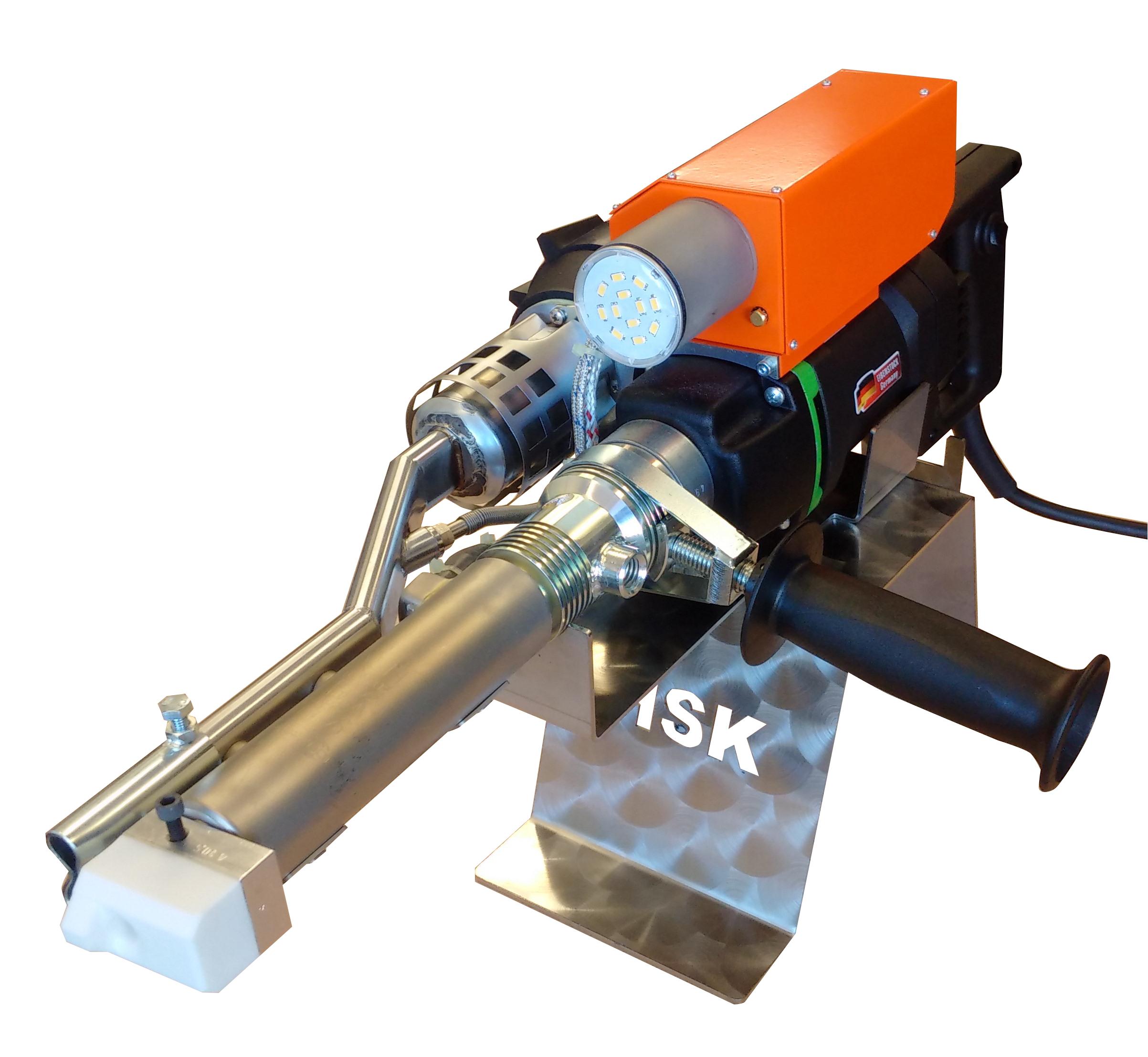

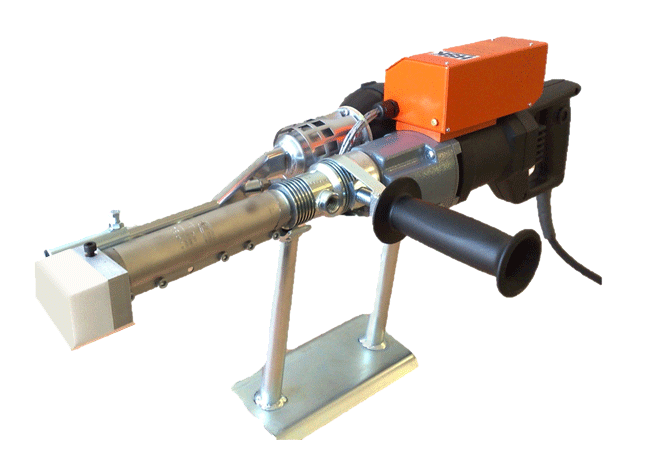

HSK 40 RSX
Workhorse extruder with 2.8 kg/h output on Ø 4 mm rod. Proven in geomembrane, civil engineering and industrial applications.
| Welding capacity (PE) | 2.8 kg/h · Ø 4 mm rod |
| Max. rod diameter | Ø 4 mm PE/PP |
| Dimensions (L×W×H) | 643 × 180 × 215 mm |
| Extruder heating | 700 W |
| Hot air blower | 2200 W |
| Voltage | 230 V / 50 Hz |
| Weight | 8.8 kg |
| Includes | 1 × welding shoe blank |
Click to enlarge

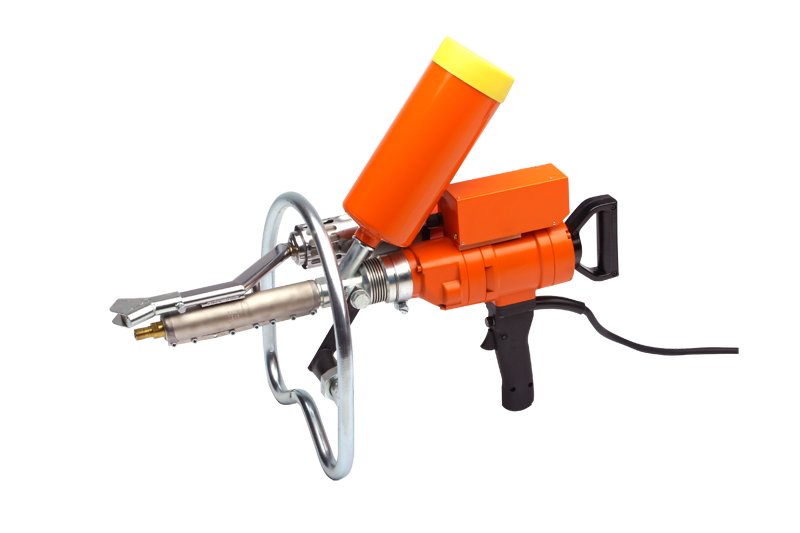

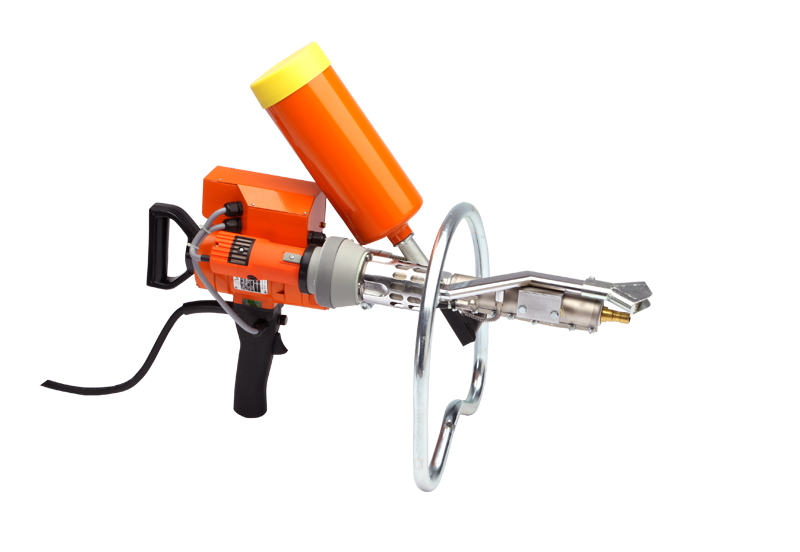

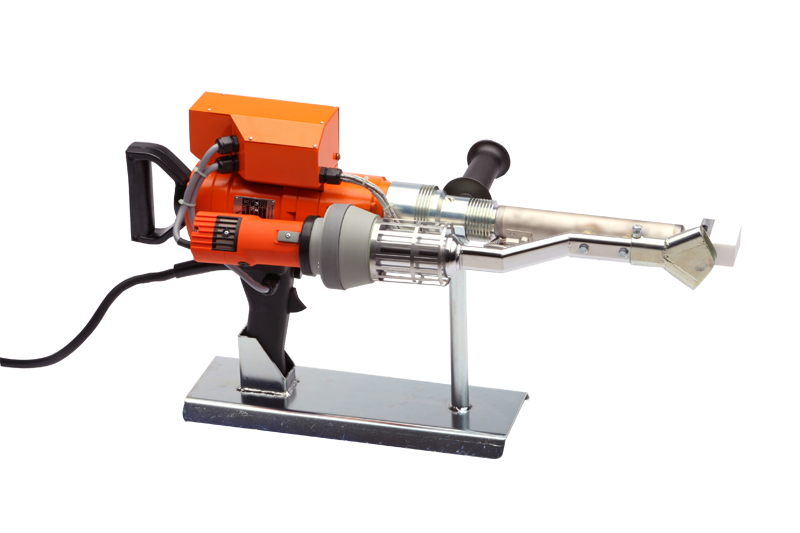

HSK 60 DE
High-capacity 3-phase extruder delivering 6.0 kg/h. Designed for heavy industrial and large-scale geomembrane welding operations.
| Welding capacity (PE) | 6.0 kg/h · Ø 5 mm rod |
| Max. rod diameter | Ø 4 / 5 mm PE/PP |
| Dimensions (L×W×H) | 770 × 160 × 340 mm |
| Extruder heating | 1200 W |
| Hot air blower | 3300 W |
| Voltage | 400 V (3×230 V) / 50 Hz |
| Weight | 12.0 kg |
| Includes | 1 × welding shoe blank |
Click to enlarge

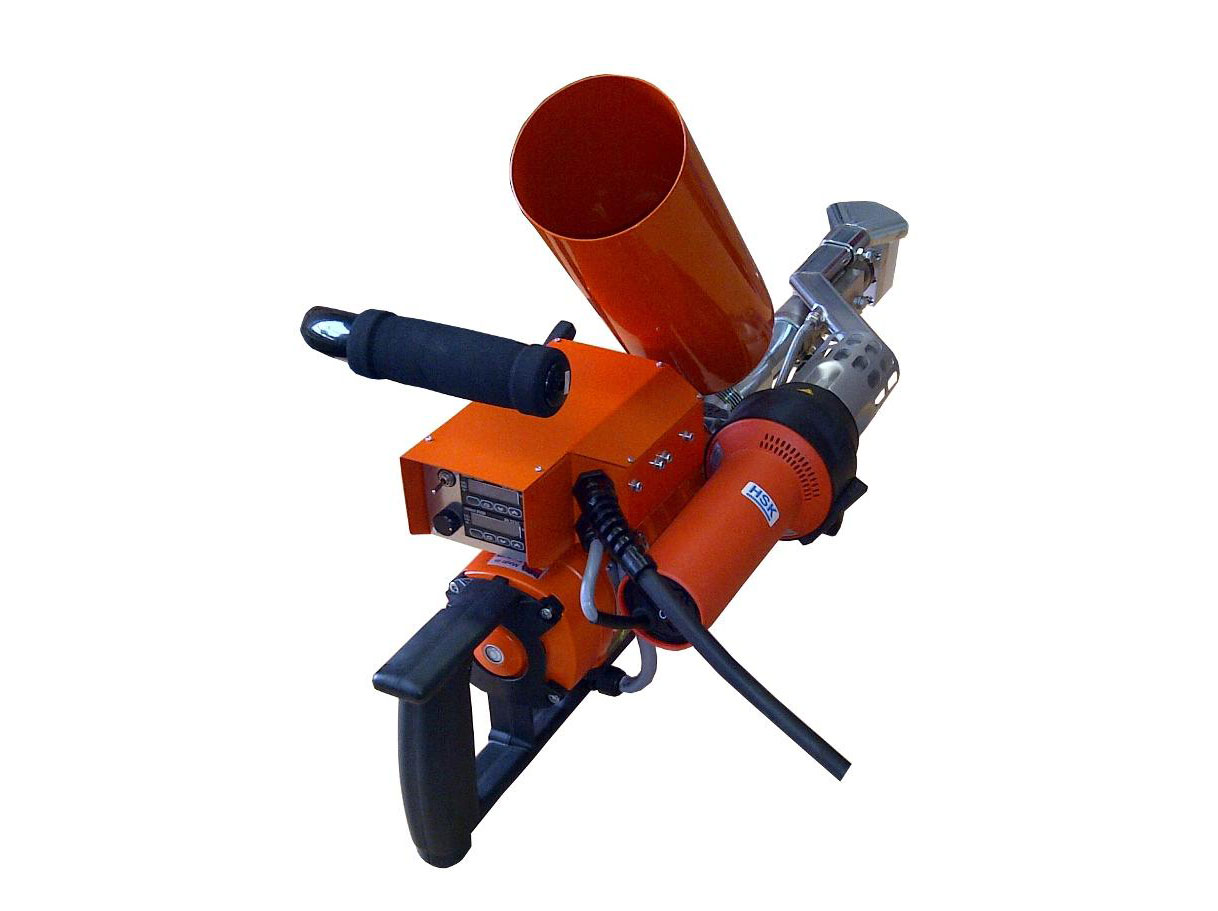

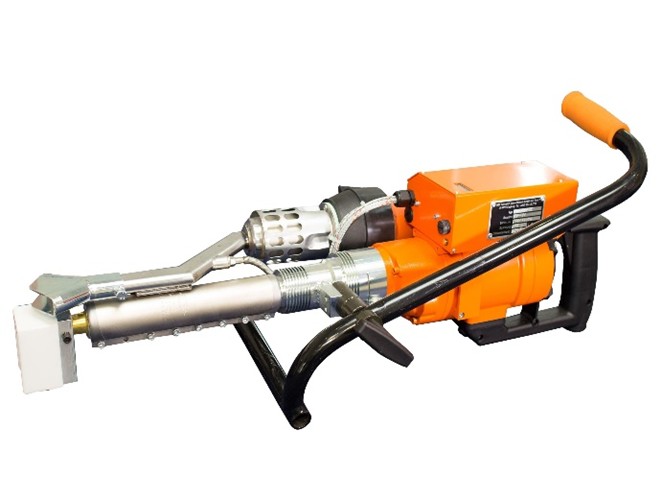

HSK 60.1 DE Deponie / Landfill
Landfill-specification variant of the HSK 60 DE. Identical performance optimised for geomembrane liner installation in waste containment and landfill capping projects.
| Welding capacity (PE) | 6.0 kg/h · Ø 5 mm rod |
| Max. rod diameter | Ø 4 / 5 mm PE/PP |
| Dimensions (L×W×H) | 770 × 160 × 340 mm |
| Extruder heating | 1200 W |
| Hot air blower | 3300 W |
| Voltage | 400 V (3×230 V) / 50 Hz |
| Weight | 12.0 kg |
| Includes | 1 × welding shoe blank |
